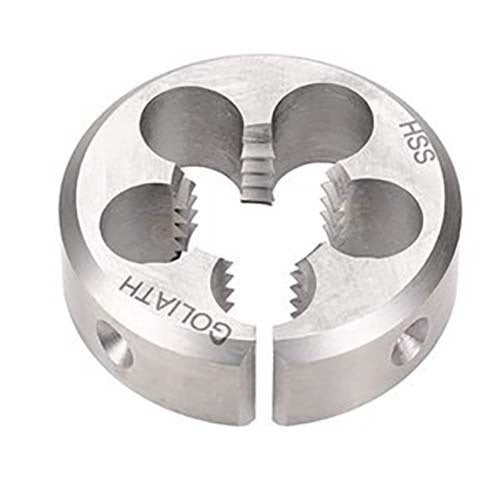

Goliath 1/2" x 28 TPI UNEF 1-1/2" HSS Circular Split Button Die - F15XDD

Product Features

• M2-HSS material provides increased wear resistance and superior thread accuracy

Applications

• HSS Button Dies (also known as Adjustable Dies) are designed for cutting external threads
• They also can be used to cut smaller or larger, than factory setting, by utilising the adjusting screws in the die holder
• Fine threads are also used where the length of engagement is limited 1-1/4 or where wall thickness demands a fine pitch

Specifications

• They are used for threading rods, bolts, and studs, either by hand using a die stock, or by machine using a floating die holder
• Unified National Extra Fine (UNEF) thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK
• When used on external threads this series has greater tensile stress area than coarse threads of the same size
• HSS Circular Split Button Die
• Dies are manufactured with a thread chamfer to aid starting
