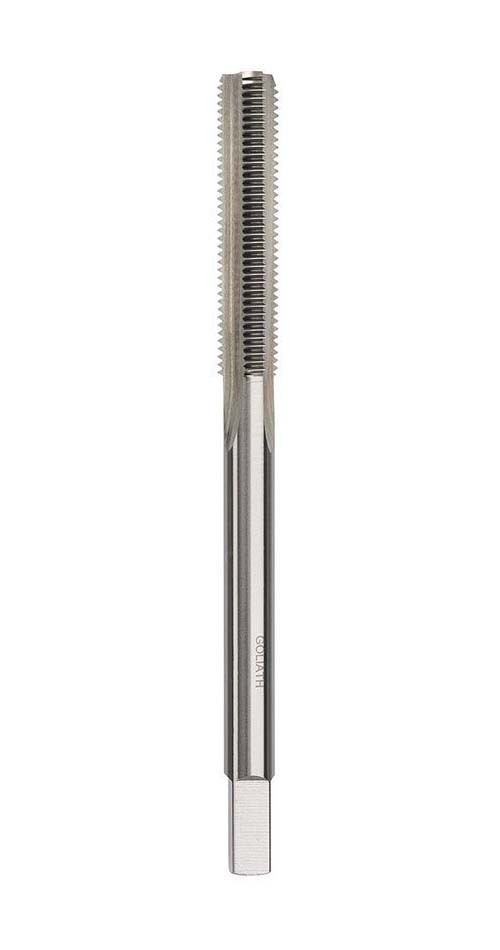

Goliath 1" x 12 TPI UNF Bottom Machine Nut HSS Bright Tap - L20DK3
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath UNF Bottom Long Reach Machine Nut HSS Tap, available in 9 diameter options: 1", 1/2", 1/4", 3/4", 3/8", 5/8", 5/16", 7/8" and 1 more.
Goliath UNF tap and die sets cut Unified National Fine threads for precision fastener applications and American-standard equipment requiring fine-pitch thread forms.
Where this product is used
Goliath unf tap and die set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Cutting Unified National Fine threads for precision American-standard assemblies.
- Aerospace, automotive, and precision engineering applications using UNF thread forms.
- Repair and rethreading of fine-pitch American-standard fasteners.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS |
Selecting the right option
UNF sets suit precision and thin-wall applications where fine pitch is required. Check that the set covers your required size range before ordering. UNF and UNC threads are not interchangeable — confirm the thread specification before cutting.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath UNF Bottom Long Reach Machine Nut HSS Tap: 1"
SKU: A0198795 | Model: L20DK3
This is the diameter 1" option of the Goliath UNF Bottom Long Reach Machine Nut HSS Tap. Key details for this option: thread form type UNF, drill diameter 23.25mm.
Goliath UNF Intermediate Long Reach Machine Nut HSS Tap
HSS Bright Finish UNF Machine Nut Bottoming Tap.
Machine Nut Taps are used where a long shank is needed and are available in Taper, Intermediate, and Bottoming leads.
To ensure easy and precise use the Machine Nut Tap Taper lead has a unique, very long entering chamfer.
This makes aligning the cutting end with the workpiece simple.
Ideal for tapping nuts, small quantities made from tough steel such as stainless steel as well as mild steels, or for rethreading rusty or worn threads.
Alternatively, the Intermediate and Bottoming leads are ideally suited to long reach threading applications where the thread needing to be tapped or cleaned is beyond the reach of a standard tap.
We recommend the Intermediate lead Machine Nut Tap for long reach through-hole applications and the Bottoming lead for long reach blind hole applications.
Unified National Fine (UNF) thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada, and the UK.
The thread profile of UNF is the same as for metric threads and is described in the JIS B0206 standard.
The thread is described by its major diameter and the number of threads per inch of length (TPI).
When used on external threads this series has a greater tensile stress area than coarse threads of the same size.
Fine series threads will resist stripping out better than coarse threads in areas where the external and mating internal threads are subjected to loads equal to or greater than the capacity of the screw or bolt.
Fine threads are also used where the length of engagement is limited 1-1/4 or where wall thickness demands a fine pitch.
