Goliath 1/4" UNF Coventry Chaser (Dieheads) 1/4" AM5-Rake
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath UNF Coventry Chaser (Dieheads) M5-Rake, available in 4 size options: 1/4", 5/8", No. 4-48, No. 12-28.
Goliath UNF tap and die sets cut Unified National Fine threads for precision fastener applications and American-standard equipment requiring fine-pitch thread forms.
Where this product is used
Goliath unf tap and die set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Cutting Unified National Fine threads for precision American-standard assemblies.
- Aerospace, automotive, and precision engineering applications using UNF thread forms.
- Repair and rethreading of fine-pitch American-standard fasteners.
Key specifications
| Specification | Detail |
|---|---|
| Thread Size | M5 |
Selecting the right option
UNF sets suit precision and thin-wall applications where fine pitch is required. Check that the set covers your required size range before ordering. UNF and UNC threads are not interchangeable — confirm the thread specification before cutting.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath UNF Coventry Chaser (Dieheads) M5-Rake: 1/4"
SKU: A0198866 | Model: P14NF14M5
Size 1/4". Goliath UNF Coventry Chaser (Dieheads) M5-Rake

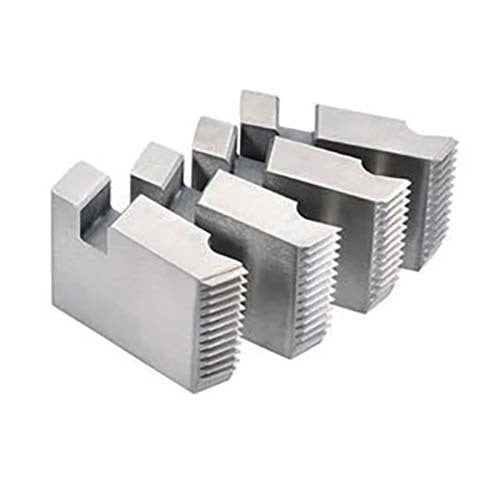

4 piece coventry style thread cutting chaser.
Coventry Chasers (Dieheads) can be used on Turret lathes, CNC, and automatic screw machines.
The total system is noted for its ease and simplicity in setting, and for the accuracy of cut over a very wide range of thread variations.
Automatic self-opening at the completion of each cut makes Coventry ideal for batch or continuous production work.
Coventry chasers are designed so that cutting takes place at the chamfer and the first full tooth. The other teeth are above centre height, so they act as a nut, ensuring accurate pitch.
Rugged - simple construction for reliability and long life.
Compactness - permitting use on machines with limited clearance.
Accurate Pitch - due to the guiding action of the non-cutting portion of the die.
Adjustability - providing fine regulation of finished diameter for 3a class threads.
Parallel threads - due to the very efficient support of the dies in the diehead.
Minimum downtime - for change of thread size, important for production economy on short to medium batch runs.
