INOX 304 hex flange pit screws
Available

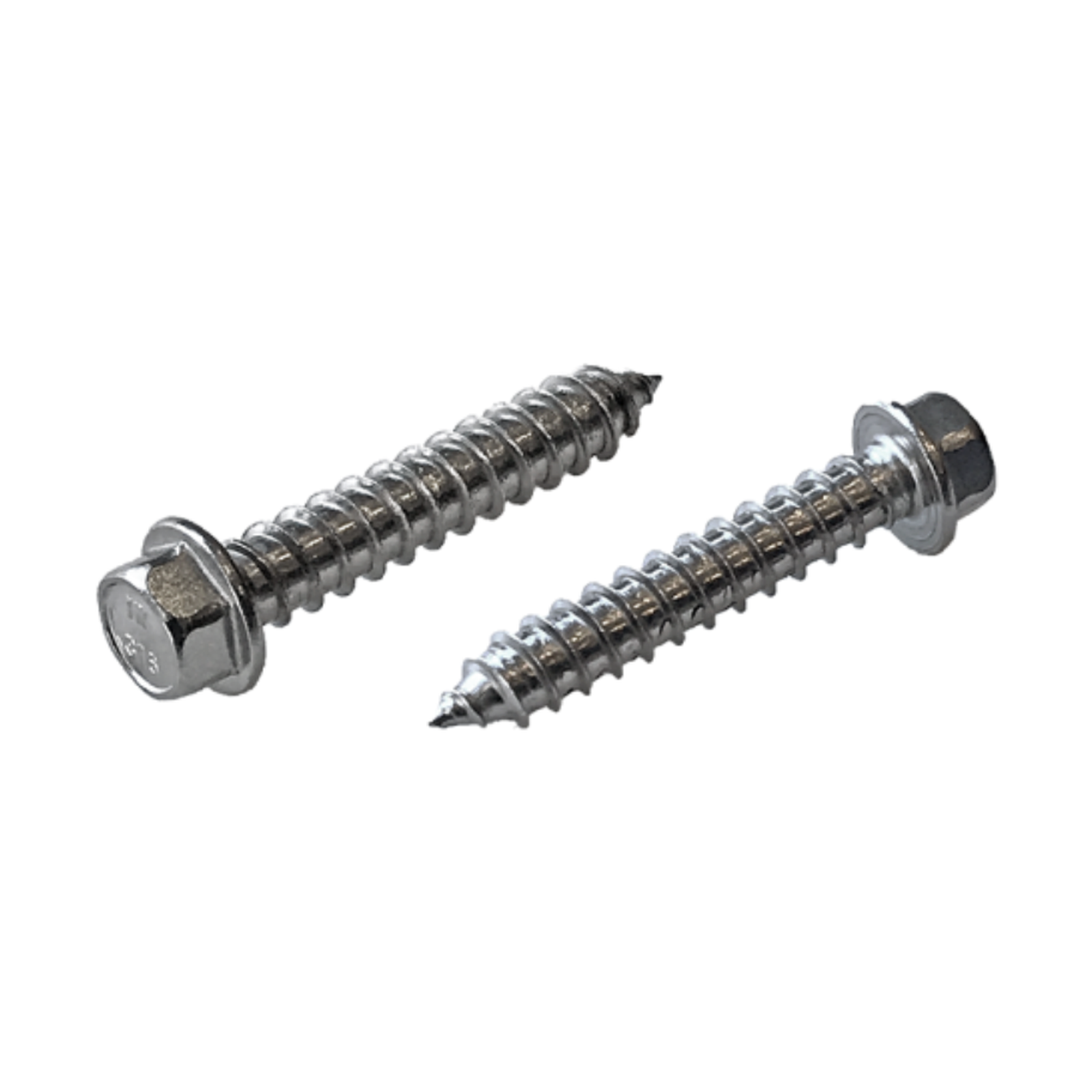

INOX Hex Flange Pit Screw T17 A2 (304) is a self-tapping screw. The Hex Flange Pit Screw T17 A2 (304) is a hex head screw with an integral flange and a Type 17 (T17) point, a "pit" screw with a 5/16" drive.
Made from 304 (A2) stainless steel, a standard austenitic grade with good everyday corrosion resistance. It is a sound choice away from the coast; in chloride-exposed settings, step up to 316 (A4). Each variant is supplied in packs of 500. Use stainless washers and nuts with stainless fasteners, so the whole joint is made of the same material.
Where this product is used
- Bulk jobs and trade or maintenance stores buying in larger packs
- Timber-to-timber connections
- Indoor architectural and joinery work
- General workshop and maintenance use
- Fixing timber framing, battens and cladding
- Signs, furniture and fittings
Features
- Pack quantities to suit trade and bulk buying: packs of 500
- Integral flange spreads the load like a washer
- Hex drive, 5/16"
- T17 cutting point starts in timber
- A2 (304) stainless steel for indoor, fresh water and general outdoor use
Key specifications
| Specification | Detail |
|---|---|
| Brand | INOX |
| Product | Hex Flange Pit Screw T17 |
| Type | Hex head screw with an integral flange and a Type 17 (T17) point, a "pit" screw with a 5/16" drive |
| Material | A2 (304) stainless steel |
| Key features | T17 cutting point starts in timber, Integral flange spreads the load like a washer |
| Environment | Indoor, fresh water and general outdoor use |
| Magnetic response | Generally non-magnetic (austenitic), cold-worked parts can show weak magnetism |
| Pack size | 500 |
| Drive | 5/16" hex |
| Fitting tip | Use anti-seize on the thread to reduce galling |
| Variants | 1 |
| Head type | Hex flange |
Choosing the right option
The drive is 5/16" hex. Pre-drilling is still advised in dense hardwood or close to the end of a board.
