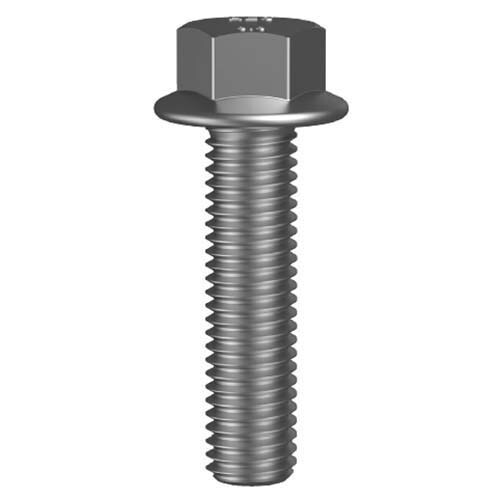

Hobson Metric Hex Flange Bolt, M14 x 35mm

The Hobson metric hex flange bolt has a hex head with a flange under it, which acts as a built-in washer face, and a metric thread (Class 10.9, plain). There are 7 items in M14, lengths 35 to 70mm. Class 10.9 is high tensile, and corresponds to imperial grade 8.

Every item is supplied as a pack of 25.

Where this product is used

• Fastening with a nut or into a tapped hole, where the flange acts as a built-in washer under the head
• Replacing a hex flange bolt of the same thread form, diameter and length

Features

• 7 items: M14
• Class 10.9, plain
• Length 35 to 70mm
• Sizes: M14

Key specifications

Choosing the right option

Choose the thread form first: the screw and the nut or tapped hole must match in thread form, diameter and pitch. Length is measured from under the head to the end of the screw.
