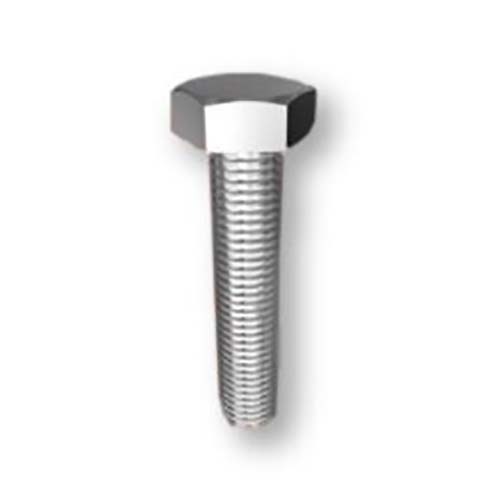

Bumax Hex Set Screw, M16

The Bumax hex set screw is a hex head screw with a metric thread, fitted into a tapped hole or through a clearance hole with a nut. There are 2 items: M16 and M20, in lengths of 130 and 140mm.

ISO 4017 is named for these screws. The pitch shown for each size is the coarse pitch from the thread table. Every item is supplied as a single item.

Where this product is used

• Fitted into a tapped hole, or through a clearance hole with a nut and washer, to clamp parts together
• Replacing a hex head screw of the same thread form, diameter, pitch and length
• Equipment and fabrication work where a hex head screw is called for

Features

• 2 items: M16 and M20, lengths 130 and 140mm
• Metric thread, pitch shown for each size
• Bumax 88
• Hex head
• ISO 4017 named for this product
• Supplied as a single item

Key specifications

Choosing the right option

Choose the thread form first: the screw and the nut or tapped hole must match in thread form, diameter and pitch. Metric sizes are the nominal diameter in millimetres; compare the pitch with your nut or tapped hole. Length is measured from under the head to the end of the screw.
