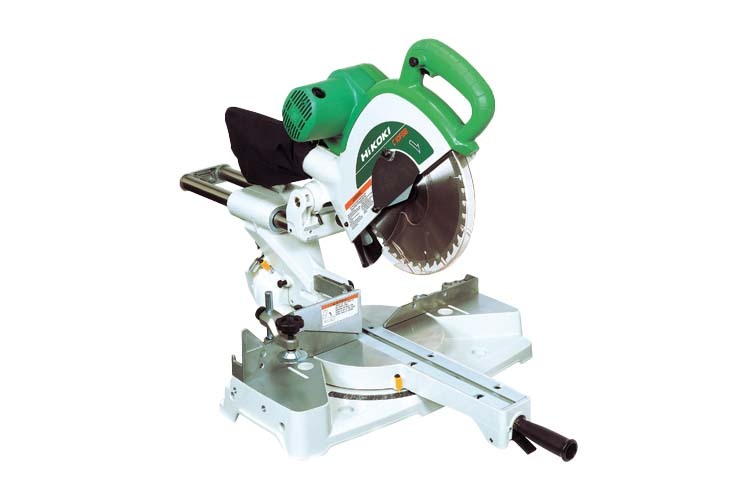

HiKOKI Slide Compound Mitre Saw C10FSB(H1Z)

• Get the job done faster and easier with HiKOKI.
• The HiKOKI C10FSB 255mm Slide Compound Mitre Saw packs a punch 3,800 (min-1) no load speed in power mode and has cutting capacity of 0 - 45° left & 0 - 57° right angle which is ideal for various cutting applications.

Product Features:

• Poly v-belt and motor driving system for longer service life
• Soft start to reduce recoil force during motor start up
• Electronic constant speed control
• Positive mitre stops for quick and easy adjustment

Warranty:

• 3 Years Standard Warranty
• 6 Years Extended Warranty if registered online

Specifications

• Capacity - Mitre angle: 0 - 45° left & 0 - 57° right
• Capacity - Bevel angle: 0 - 0 - 45° left & right
• Capacity - Positive mitre angle stop: 0, 15, 22.5, 31.6, 45°
• Input power: 1,450W
• No load speed: 3,800 (min-1)
• Blade diameter: 262mm
• Blade bore: 25.4mm
• Weight: 19.5kg
• Dimensions: 525 x 1050 x 615mm
• Standard accessories: Blade, dust bag, vice assembly, and wrench

Maximum Cutting Capacity for C10FSB

• 0° (Right angle): 88mm x 312mm / 91mm x 300mm
• Mitre right / left 45°: 88mm x 218mm / 91mm x 200mm
• Mitre right 57°: 88mm x 165mm / 91mm x 150mm
• Bevel left 45°: 55mm x 305mm / 60mm x 290mm
• Bevel right 45°: 30mm x 305mm / 35mm x 290mm
• Mitre right / left 45° + Bevel left 45°: 55mm x 218mm / 60mm x 200mm
• Mitre right / left 45° + Bevel right 45°: 30mm x 218mm / 35mm x 200mm
