HiKOKI DB3DL2(HLZ) Pencil Driver Drill Kit

• Introducing the 36V 28mm SDS PLUS Brushless Rotary Hammer with Quick Release Chuck Kit DH3628DC(HRZ) from HiKOKI.
• The DH3628DC is a game-changing rotary hammer designed to revolutionize your construction projects.
• Powered by a robust 36V brushless motor, this 28mm SDS PLUS hammer delivers unrivaled performance and exceptional drilling power.
• Equipped with a quick-release chuck, it allows for effortless bit changes, saving you valuable time on the job site.
• The DH3628DC(H4Z) boasts enhanced durability, ensuring it can withstand the toughest tasks and prolonged use.
• With its cutting-edge technology and ergonomic design, this HiKOKI rotary hammer is the ultimate tool for professionals seeking precision, efficiency, and reliability in their work.
• Experience the future of drilling today

Features

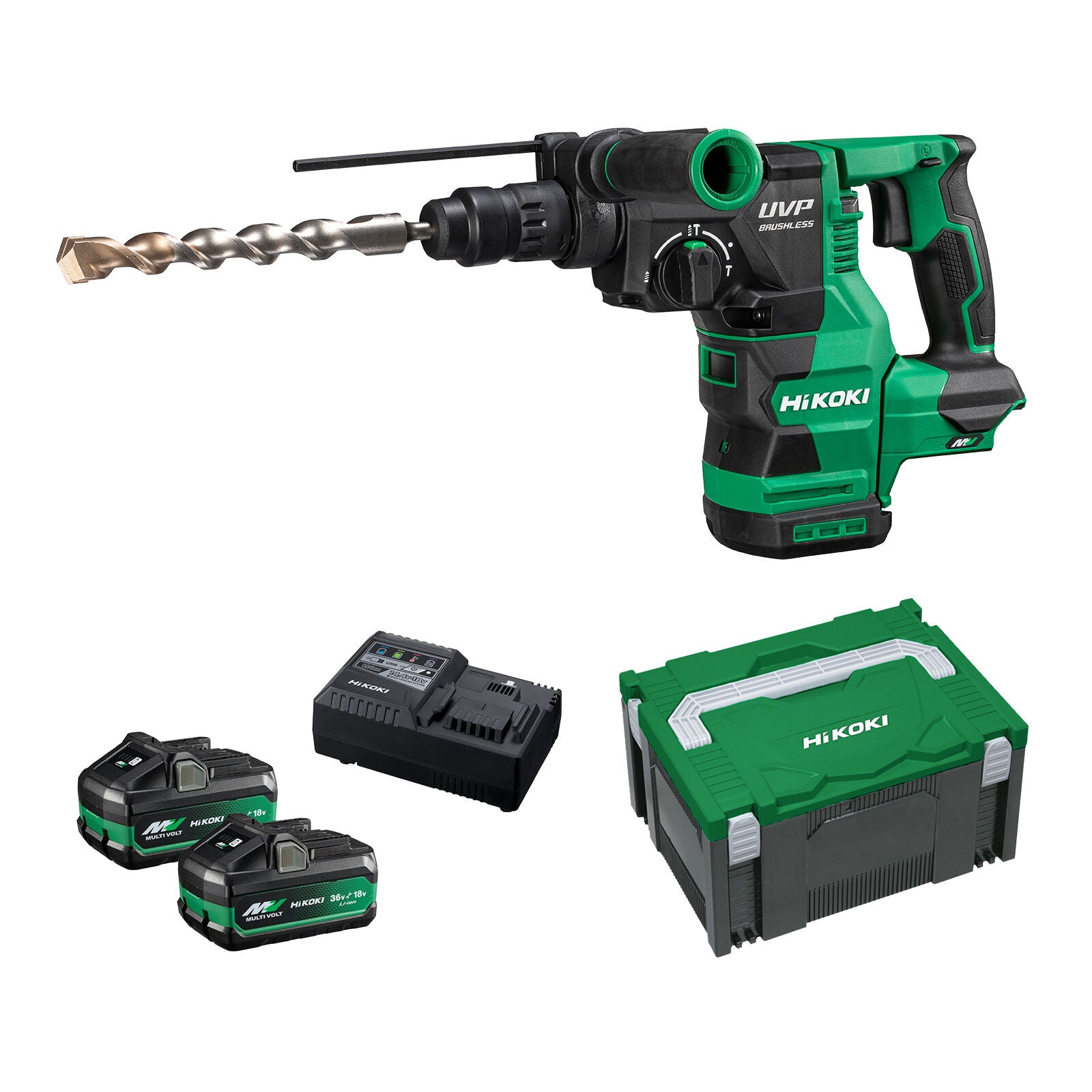

• 1 x DH3628DC 36V 28mm SDS PLUS Brushless Rotary Hammer with Quick Release Chuck Kit
• 2 x BSL36A18X 18V 5.0Ah / 36V 2.5Ah MultiVolt Battery
• 1 x UC18YSL3 18V Rapid Charger with USB port
• 1 x Stackable Case

Warranty:

• Includes 3 Years Standard Warranty with an additional 3 Years when registered online.

About DH3628DC 36V 28mm SDS PLUS Brushless Rotary Hammer with Quick Release

• Achieve exceptional drilling speed and chiseling performance with an impact energy of 3.2J (2.4ft-lbs).
• Experience reduced vibration with the innovative Low Vibration System (UVP), featuring a dynamic vibration absorber and a low vibration handle.
• Enjoy additional functionality, including an LED level, Reactive Force Control (RFC), 2-step rotation speed, auto stop function, and an LED working light for enhanced precision.
• Benefit from the available dust extractor system, featuring a compact and lightweight design, cyclonic separation for sustained suction power, and a HEPA filter ensuring clean air exhaust.
• Effortlessly switch between SDS-plus and wood/metal drill bits with the Quick Release Chuck, enhancing adaptability.
• Experience lasting performance with the durable brushless motor.
• Operate comfortably and efficiently with the ergonomically designed L-shaped body.

DH3628DC 36V 28mm SDS PLUS Brushless Rotary Hammer with Quick ReleaseSpecifications

• Voltage: 36V
• Motor type: Brushless
• Switch type: Variable speed trigger switch
• Impact energy: 3.2J
• Drilling Range Capacity

  Concrete drill bit: 3.4 - 28mm
  Concrete core bit: 25 - 50mm
  Steel: 13mm
  Wood: 32mm


• Full load impact rate: 0 - 4,300bpm
• No-load rotation speed: 0-950rpm
• 3 operating modes: Hammer only, drilling only & Hammer / Drilling
• Light: LED
• UVP (User Vibration Protection): Yes
• Low Vibration Handle: Yes
• RFC (Reactive Force Control): Yes
• One-Push Action for Quick Bit Mounting: Yes
• Constant Speed Control: Yes
• 2 Step Speed Control: Yes
• Auto Stop Function: Yes
• LED level: Yes
• Weight including battery (BSL36A18): 3.9kg
• Dimensions L x W x H including battery: 356 x 91 x 232mm

About BSL36A18X 18V 5.0Ah / 36V 2.5Ah MultiVolt Battery

• Dual Voltage: 18V and 36V, offering versatility.
• Multiplex Protection Circuit (MPC): Guards against overload, overcharge, and over-discharge for enhanced safety and battery longevity.
• No Memory Effect: Charge it whenever you need, without performance loss.

BSL36A18X 18V 5.0Ah / 36V 2.5Ah MultiVolt Battery Specifications

• Voltage: 18V / 36V
• Ampere: 5.0Ah (36V) / 2.5Ah (18V)
• Power Output: 1080W
• Cell Technology: Lithium (Li-ion) cells
• Cooling System: Yes
• Battery Mounting: Slide
• Battery Level Indicator: Yes
• Approx. charge time UC18YSL3: 32 minutes
• Recharge cycles: Approx. 1,500
• Weight: 0.7kg (700 grams)
• Dimensions (L x W x H): 119 x 69 x 76mm
• Compatibility: Compatible with HiKOKI 18V &36V Slide battery type products

About UC18YSL3 18V Rapid Charger with USB port

• Approximately 38 minutes charging time (6.0Ah battery)
• Approximately 32 minutes charging time (5.0Ah battery)
• 18V Rapid charger with cooling and USB port
• Compatible with all HiKOKI 18V slide type li-ion batteries

UC18YSL3 18V Rapid Charger with USB port Specifications

• Voltage: 14.4V / 18V
• Battery type: Lithium-ion (li-ion) Slide battery
• Fan cooling: Yes
• Charging time
  Approx. 32min for 5.0Ah Battery
  Approx. 38min for 6.0Ah Battery
• Status indicator: LED light
• USP port: 5V, 2.0Ah
