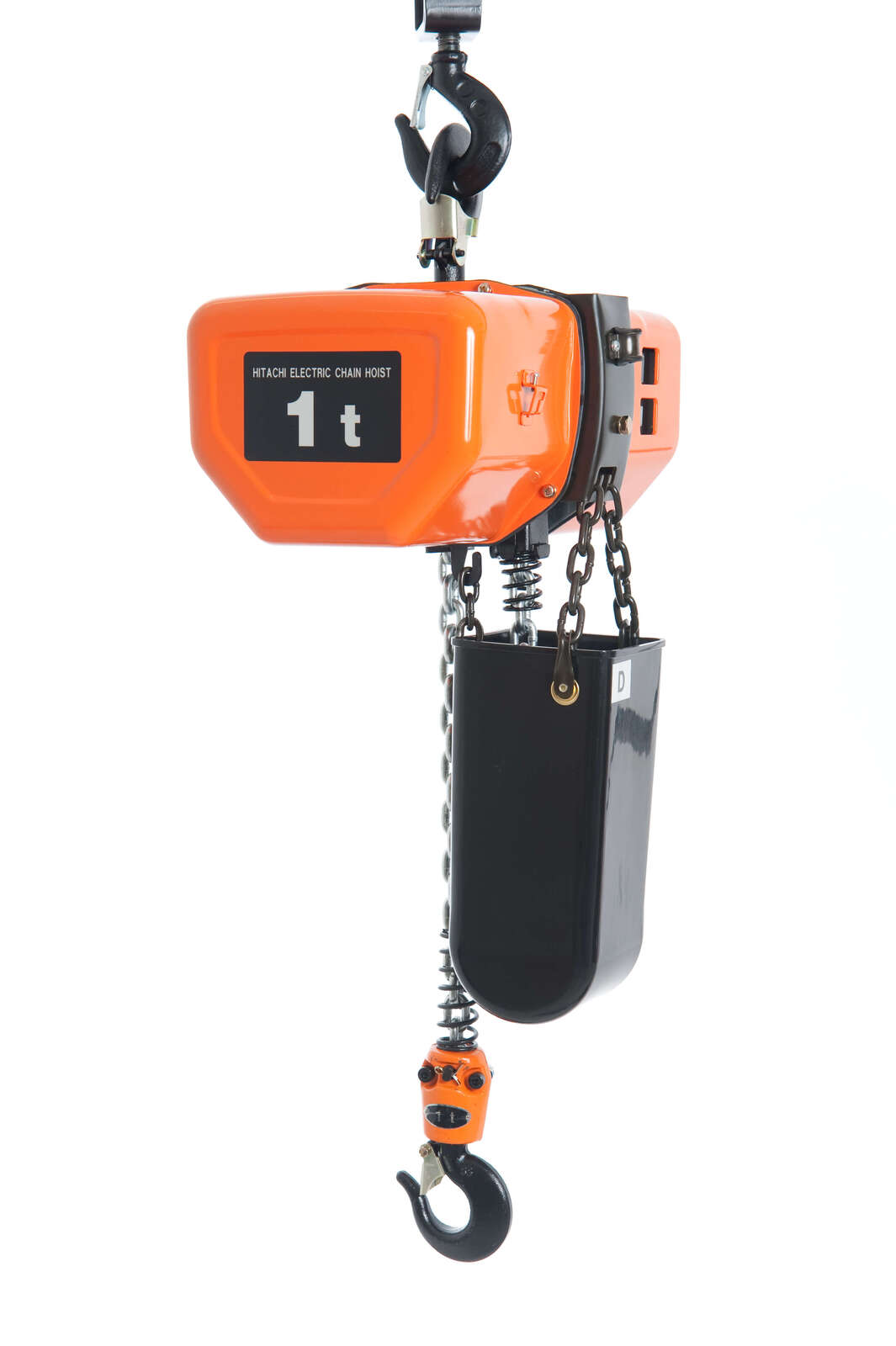

Hitachi HEH100 Three Phase Electric Chain Hoist, 1 tonne (1,000kg), Single Speed

The Hitachi Electric Hoist (three phase) is a 415V electric chain hoist listed in the Pacific Hoists catalogue in capacities from 250kg to 5 tonne, with a single speed or dual speed pendant (manufacturer-stated). This page lists the 1 tonne to 5 tonne models: 11 models, each with a 3m lift and a 2m control length.

The catalogue lists a single or dual speed IP65 pendant with 24V control, nickel-plated grade 80 load chain as standard, an electro-mechanical overload limiter, full current and shunt limit switches that operate in both directions of hook travel, an electro-magnetic self-adjusting disc type brake, motor thermal protection, high rated contactors and an IP rating of 54 (manufacturer-stated). A reverse phase protection relay is listed for sizes above 500kg (manufacturer-stated).

For each model the catalogue gives the rated capacity, lift, control length, voltage, lifting speed, E.D rating, chain falls, load chain size, net weight and the maker's model code. Dual speed models list a fast and a slow lifting speed. Wireless remote control, an electric trolley, zinc-plated grade 80 load chain, a custom height of lift and a custom pendant length are listed as options and are not part of this listing.

The catalogue lists this range against Australian Standard AS1418.2 (manufacturer-stated). No certificate or test report is shown on this page: if your site needs proof of compliance, ask for the maker's documents before you buy.

Where this product is used

• Powered lifting in production areas, workshops and maintenance bays on a three phase supply
• Repeat lifts of heavier loads, up to 5 tonne
• Fine positioning with the slow speed on dual speed models

Features

• Rated capacity from 1 tonne to 5 tonne in this listing (manufacturer-stated)
• 415V three phase, single or dual speed IP65 pendant with 24V control (manufacturer-stated)
• 3m lift and 2m control length on every model
• Nickel-plated grade 80 load chain as standard (manufacturer-stated)
• Electro-mechanical overload limiter (manufacturer-stated)
• Full current and shunt limit switches that operate in both directions of hook travel (manufacturer-stated)
• Electro-magnetic, self-adjusting disc type brake (manufacturer-stated)
• Motor thermal protection and high rated contactors (manufacturer-stated)
• Reverse phase protection relay on sizes above 500kg (manufacturer-stated)
• IP rating 54 (manufacturer-stated)

Common specifications

Key specifications

Figures are as printed in the Pacific Hoists catalogue (manufacturer-stated). Lifting speed is in metres per minute: dual speed models show the fast and slow speeds. Lift is 3m and control length 2m on every model.

Selecting the right option

Choose the capacity on your heaviest lift and keep the load inside the rated capacity on the table, then choose single or dual speed: dual speed models add a slower speed for placing loads. Lifting speed falls as capacity rises, and chain falls rise with capacity. Check the supply is 415V three phase. The 250kg and 500kg sizes are on their own page. Lifting equipment must be used within its rated capacity, inspected before each use, and selected and used in line with your site lifting procedure and the applicable standards and regulations. Do not use it to lift or lower people. If you are unsure what suits your lift, speak to a qualified rigger before ordering.
