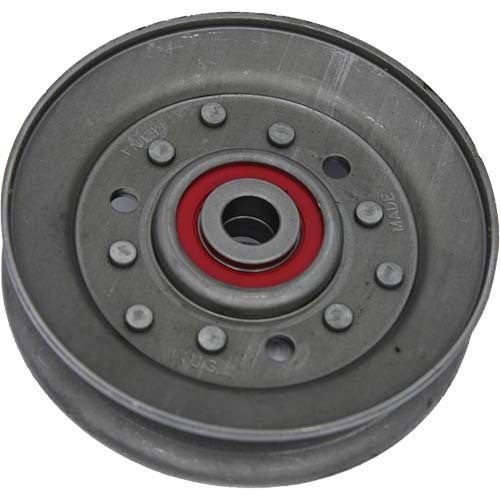

Aetna V-Belt Idler Pulley B Section - Single Row Bearing
Available
Aetna high speed V-belt idler pulleys with a single row bearing. They are made for heavy-duty drives where loads and speeds are greater than unground bearings suit, usually over 2,000 RPM, and are used as belt tensioners or direction changers.
Aetna is a brand of Aetna Bearing Company, based in Livonia, Michigan, USA.
Where this product is used
- Agricultural machinery, including harvesting and baling equipment
- V-belt drives that need a tensioner or a direction change
- Heavy-duty drives running at higher speeds
- General workshop and maintenance replacement of worn idlers
Features
- Heavy gauge precision-formed steel with a double row of steel rivets and a strengthening rib
- Precision single-row bearing, lubricated and sealed for life
- Solid steel bushing gives proper mounting clearance
- Weep holes stop water building up inside the pulley
- Basic radial load rating of the bearing: 1,820 lbf (8.10 kN)
- Bearing is permanently lubricated and sealed against dirt and grime
Key specifications
| Specification | Detail |
|---|---|
| Brand | Aetna |
| Product type | V-Belt Idler Pulley |
| Series | Single Row Bearing |
| Bearing | Single row, lubricated and sealed |
| Belt section | B |
| Outside diameter range | 4-3/8" |
| Nominal bore | 1/2" and 5/8" |
| Model codes | B13516-A and B13516-B |
| Sizes | 2 |

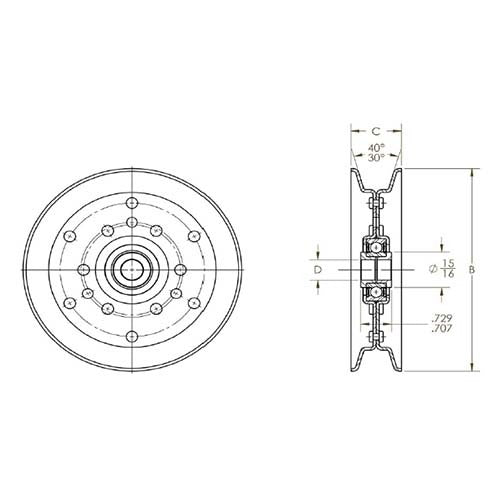

Available sizes
| Model | SKU | OD, in (mm) | Bore, in | Belt section |
|---|---|---|---|---|
| B13516-A | A0151003 | 4-3/8 (111.125) | 0.510 to 0.515 | B |
| B13516-B | A0151004 | 4-3/8 (111.125) | 0.635 to 0.640 | B |
Fitting and use
Mount the idler on a bolt that matches the bore, or the reduction bush where one is fitted, and clamp through the bush or inner ring only so the pulley rim turns freely on the bearing.
The bearing is sealed and lubricated at the factory. Keep water, grit and solvents away from the seals, and replace the idler if the bearing runs rough or noisy.
Choosing the right option
Match the idler to the belt it runs on (V-belt section), then the outside diameter, the bore or bolt size, and the width the belt needs.
The model codes and dimensions for each size are in the sizes table. If you have the old idler, match its model code or measure the outside diameter, bore and width.
Related idlers: Aetna V-Belt Idler Pulley, C Section 7-5/16" OD x 5/8" Bore - C15919-B9, Don Dye V-Belt Idler Pulley - Single Row Bearing, A and B Section, 5" OD - ABVI-80, Don Dye V-Belt Idler Pulley, A and B Section, 5" OD, Plain Steel One Side - TABVI-80PLAIN.
| Option | Part number | SKU |
|---|---|---|
| 1/2 | A0151003 | |
| 5/8 | A0151004 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Aetna V-Belt Idler Pulley - Single Row Bearing, B Section, 4-3/8" OD: 1/2
SKU: A0151003 | Model: B13516-A
Aetna V-belt idler pulley B section, 4-3/8" OD, 1/2" bore, model B13516-A.
