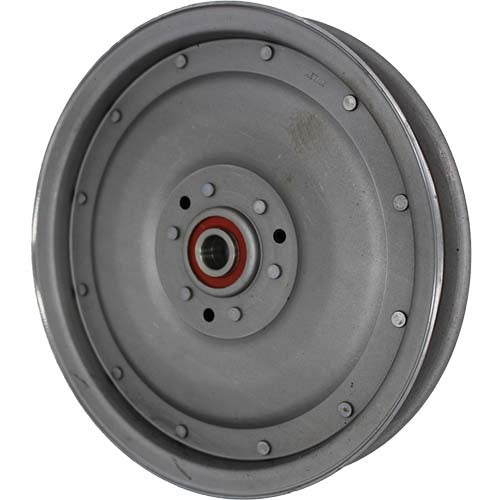

Idler Pulley Flat Flanged - Single Row Bearing

• Flat Flanged - Single Row Bearing.

About Aetna Flanged Belt Idler Single Row Bearing

• They are used in heavy-duty applications where loads and speeds are greater than required for unground bearings-usually over 2000 RPM.
• Many are used on modern combines and hay baling equipment.
• Aetna flanged belt idlers are available with single-row bearings with a bore size to clear 1/2" and 5/8" bolts.
• Aetna belt idlers are generally used as tensioners or direction changes. Permanently lubricated and sealed against grime and dirt.
• Fit into the existing design with little or no engineering changes or are readily adapted to new designs.

About Advantage

• Heavy gauge precision formed steel with a double row of steel rivets with strengthening rib
• Precision bearing for high capacity, lubricated and sealed for life
• Solid steel bushing to provide proper mounting clearance
• "Weep" holes to prevent water build-up
• The basic radial load rating of precision bearing is 1,820 pounds
