1/2" Spring Washer, 304 Stainless Steel - SWAA212
The price shown is for the box.
Available

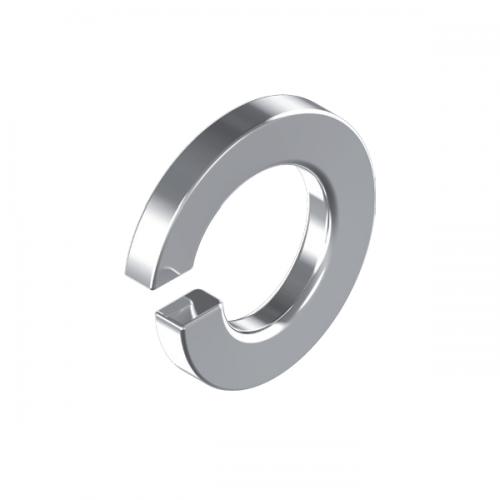

The Imperial Spring Washer, 304 Stainless Steel is available in 12 sizes (1/8" to 1") and is a split ring washer, twisted so that its ends spring apart. It sits under a nut or bolt head and helps resist loosening from vibration.
A2 stainless (grade 304) gives sound general corrosion resistance for inside work, fresh water and ordinary outdoor exposure. It is not the grade normally chosen for coastal, pool or marine work, where A4 (316) is recommended.
You can choose from 12 variants, covering sizes 1/8" to 1". Variants are supplied in packs of 50 to 200, depending on size.
Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.
Where this product is used
- Larger sizes for frames, plant and structural fixings
- Machinery, frames and covers
- Indoor architectural and joinery work
- Kitchen, bathroom and laundry fixtures
- Under nuts and bolt heads on vibrating equipment
- Signs, furniture and fittings
Features
- Range covers 1/8" to 1" in 12 variants
- A2 (304) stainless steel for indoor, fresh water and general outdoor use
- Pack quantities to suit trade and bulk buying: packs of 50 to 200
- Split ring spring action keeps pressure on the fastener
- Resists loosening from vibration

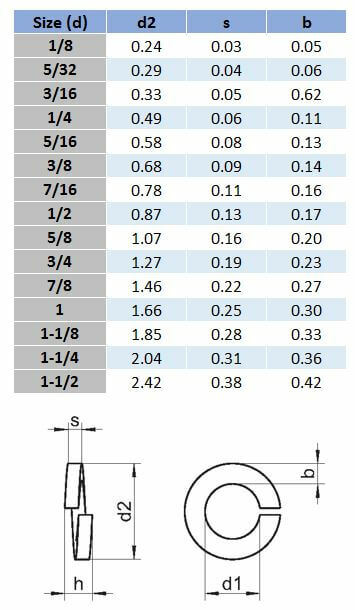

Key specifications
| Specification | Detail |
|---|---|
| Product | Imperial Spring Washer |
| Type | Split ring washer |
| Material | A2 (304) stainless steel |
| Sizes | 1/8" to 1" |
| Key features | Split ring spring action keeps pressure on the fastener; Resists loosening from vibration |
| Supplied in packs of | 50 to 200, by size |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Suited to | Indoor, fresh water and general outdoor use |
| Size system | Imperial gauge sizes |
| Variants | 12 |
Selecting the right option
A spring washer provides limited locking on its own. Where the joint is critical or loaded in shear, use a locking nut or a thread-locking method as well. Match the washer to the fastener size. Near the coast, around pools or in marine settings, use the A4 (316) version instead: Imperial Spring Washer - 316 Stainless Steel - A0212243.
Related products
Other versions in this range: Imperial Spring Washer - 316 Stainless Steel - A0212244 and Metric Spring Washer - 316 Stainless Steel. Often used with: Imperial Flat Round Washer (Standard) - 304 Stainless Steel.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Imperial Spring Washer - 304 Stainless Steel: 1/2"
SKU: A0074252 | Model: SWAA212
SWAA212: 1/2" spring washer, 304 Stainless Steel. Sold in a box of 100. Suits under nuts and bolt heads on vibrating equipment.
