IKO Shell Type Needle Roller Bearing | AIMS Industrial

IRT Shell Type Needle Roller Inner Ring

$5.59

$5.59 ~~$11.18~~

Inc. GST

Available

⚙Chrome Steel Bearing

⚙IRT Shell Needle Roller

📐Multiple Sizes Available

🔩Efficient Grinding Performance

🏗Metal Fabrication & Finishing

☑Built for Reliable Performance

Product Highlights −

IRT Shell Type Needle Roller Inner Ring

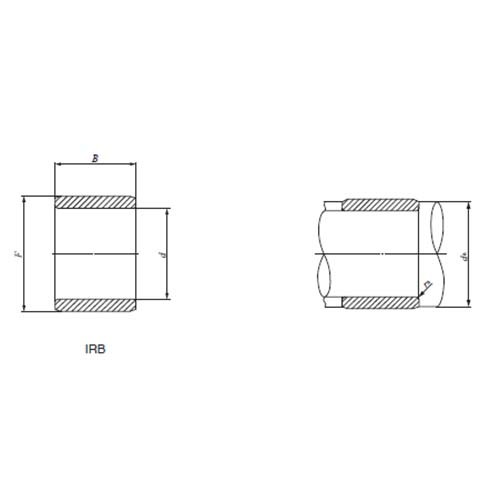

IRB model code.
The shape of the inner ring, gentle tao.

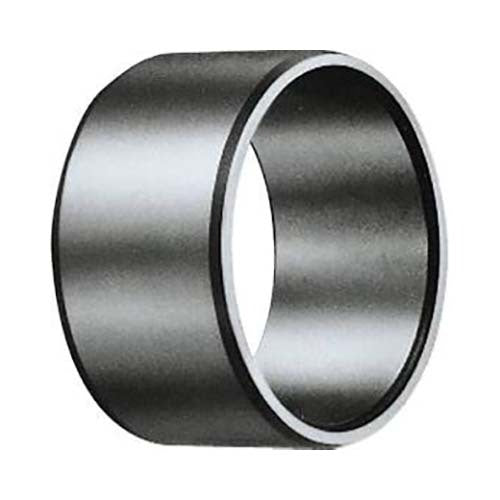

About Inner Ring

Inner Rings are heat-treated and finished by grinding to a high degree of accuracy and are used for Needle Roller Bearings.
In the case of Needle Roller Bearings, normally the shafts are heat-treated and finished by grinding and used as raceway surfaces.
However, when it is impossible to make shaft surfaces according to the specified surface hardness or surface roughness, Inner Rings are used.

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

IKO-Needle-Roller-Bearing-Series-Catalogue

Payment & Security

Secure Checkout. We do not store credit card details

Available Options:

10 mm / 10.5 / 7mm bearing
Model Number: IRT710/IKO
12 mm / 10.5 / 8mm bearing
Model Number: IRT810/IKO
15 mm / 10.5 / 10mm bearing
Model Number: IRT1010-1/IKO
22 mm / 10.5 / 17mm bearing
Model Number: IRT1710-2/IKO
25 mm / 10.5 / 20mm bearing
Model Number: IRT2010-1/IKO
10 mm / 12.5 / 7mm bearing
Model Number: IRT712/IKO
12 mm / 12.5 / 8mm bearing
Model Number: IRT812/IKO
15 mm / 12.5 / 10mm bearing
Model Number: IRT1012-1/IKO
14 mm / 12.5 / 10mm bearing
Model Number: IRT1012-2/IKO
13 mm / 12.5 / 10mm bearing
Model Number: IRT1012/IKO
16 mm / 12.5 / 12mm bearing
Model Number: IRT1212-1/IKO
15 mm / 12.5 / 12mm bearing
Model Number: IRT1212/IKO
18 mm / 12.5 / 15mm bearing
Model Number: IRT1512/IKO
35 mm / 12.5 / 30mm bearing
Model Number: IRT3012/IKO
50 mm / 12.5 / 45mm bearing
Model Number: IRT4512/IKO
62 mm / 12.5 / 52mm bearing
Model Number: IRT5212/IKO
10 mm / 15.5 / 7mm bearing
Model Number: IRT715/IKO
12 mm / 15.5 / 8mm bearing
Model Number: IRT815/IKO
15 mm / 15.5 / 10mm bearing
Model Number: IRT1015-1/IKO
17 mm / 15.5 / 12mm bearing
Model Number: IRT1215-2/IKO
20 mm / 15.5 / 15mm bearing
Model Number: IRT1515-2/IKO
18 mm / 15.5 / 15mm bearing
Model Number: IRT1515/IKO
25 mm / 15.5 / 20mm bearing
Model Number: IRT2015-1/IKO
30 mm / 15.5 / 25mm bearing
Model Number: IRT2515-1/IKO
35 mm / 15.5 / 30mm bearing
Model Number: IRT3015/IKO
38 mm / 15.5 / 32mm bearing
Model Number: IRT3215-1/IKO
40 mm / 15.5 / 35mm bearing
Model Number: IRT3515/IKO
50 mm / 15.5 / 45mm bearing
Model Number: IRT4515/IKO
14 mm / 16.5 / 10mm bearing
Model Number: IRT1016-2/IKO
16 mm / 16.5 / 12mm bearing
Model Number: IRT1216-1/IKO
15 mm / 16.5 / 12mm bearing
Model Number: IRT1216/IKO
19 mm / 16.5 / 15mm bearing
Model Number: IRT1516-1/IKO
18 mm / 16.5 / 15mm bearing
Model Number: IRT1516/IKO
21 mm / 16.5 / 17mm bearing
Model Number: IRT1716-1/IKO
22 mm / 16.5 / 17mm bearing
Model Number: IRT1716-2/IKO
20 mm / 16.5 / 17mm bearing
Model Number: IRT1716/IKO
24 mm / 16.5 / 20mm bearing
Model Number: IRT2016/IKO
14 mm / 20.5 / 10mm bearing
Model Number: IRT1020-2/IKO
16 mm / 20.5 / 12mm bearing
Model Number: IRT1220-1/IKO
17 mm / 20.5 / 12mm bearing
Model Number: IRT1220-2/IKO
19 mm / 20.5 / 15mm bearing
Model Number: IRT1520-1/IKO
20 mm / 20.5 / 15mm bearing
Model Number: IRT1520-2/IKO
18 mm / 20.5 / 15mm bearing
Model Number: IRT1520/IKO
21 mm / 20.5 / 17mm bearing
Model Number: IRT1720-1/IKO
22 mm / 20.5 / 17mm bearing
Model Number: IRT1720-2/IKO
20 mm / 20.5 / 17mm bearing
Model Number: IRT1720/IKO
25 mm / 20.5 / 20mm bearing
Model Number: IRT2020-1/IKO
24 mm / 20.5 / 20mm bearing
Model Number: IRT2020/IKO
28 mm / 20.5 / 22mm bearing
Model Number: IRT2220-1/IKO
26 mm / 20.5 / 22mm bearing
Model Number: IRT2220/IKO
30 mm / 20.5 / 25mm bearing
Model Number: IRT2520-1/IKO
32 mm / 20.5 / 28mm bearing
Model Number: IRT2820/IKO
35 mm / 20.5 / 30mm bearing
Model Number: IRT3020/IKO
38 mm / 20.5 / 32mm bearing
Model Number: IRT3220-1/IKO
37 mm / 20.5 / 32mm bearing
Model Number: IRT3220/IKO
40 mm / 20.5 / 35mm bearing
Model Number: IRT3520/IKO
45 mm / 20.5 / 40mm bearing
Model Number: IRT4020/IKO
50 mm / 20.5 / 45mm bearing
Model Number: IRT4520/IKO
55 mm / 20.5 / 50mm bearing
Model Number: IRT5020-1/IKO
16 mm / 22.5 / 12mm bearing
Model Number: IRT1222-1/IKO
15 mm / 22.5 / 12mm bearing
Model Number: IRT1222/IKO
15 mm / 25.5 / 10mm bearing
Model Number: IRT1025-1/IKO
17 mm / 25.5 / 12mm bearing
Model Number: IRT1225-2/IKO
20 mm / 25.5 / 15mm bearing
Model Number: IRT1525-2/IKO
18 mm / 25.5 / 15mm bearing
Model Number: IRT1525/IKO
22 mm / 25.5 / 17mm bearing
Model Number: IRT1725-2/IKO
25 mm / 25.5 / 20mm bearing
Model Number: IRT2025-1/IKO
35 mm / 25.5 / 30mm bearing
Model Number: IRT3025/IKO
38 mm / 25.5 / 32mm bearing
Model Number: IRT3225-1/IKO
40 mm / 25.5 / 35mm bearing
Model Number: IRT3525/IKO
45 mm / 25.5 / 40mm bearing
Model Number: IRT4025/IKO
50 mm / 25.5 / 45mm bearing
Model Number: IRT4525/IKO
55 mm / 25.5 / 50mm bearing
Model Number: IRT5025-1/IKO
60 mm / 25.5 / 50mm bearing
Model Number: IRT5025/IKO
65 mm / 25.5 / 55mm bearing
Model Number: IRT5525/IKO
70 mm / 25.5 / 60mm bearing
Model Number: IRT6025/IKO
25 mm / 26.5 / 20mm bearing
Model Number: IRT2026-1/IKO
30 mm / 26.5 / 25mm bearing
Model Number: IRT2526-1/IKO
24 mm / 28.5 / 20mm bearing
Model Number: IRT2028/IKO
20 mm / 30.5 / 15mm bearing
Model Number: IRT1530-2/IKO
22 mm / 30.5 / 17mm bearing
Model Number: IRT1730-2/IKO
20 mm / 30.5 / 17mm bearing
Model Number: IRT1730/IKO
25 mm / 30.5 / 20mm bearing
Model Number: IRT2030-1/IKO
28 mm / 30.5 / 22mm bearing
Model Number: IRT2230-1/IKO
30 mm / 30.5 / 25mm bearing
Model Number: IRT2530-1/IKO
32 mm / 30.5 / 28mm bearing
Model Number: IRT2830/IKO
35 mm / 30.5 / 30mm bearing
Model Number: IRT3030/IKO
38 mm / 30.5 / 32mm bearing
Model Number: IRT3230-1/IKO
37 mm / 30.5 / 32mm bearing
Model Number: IRT3230/IKO
40 mm / 30.5 / 35mm bearing
Model Number: IRT3530/IKO
45 mm / 30.5 / 40mm bearing
Model Number: IRT4030/IKO
50 mm / 30.5 / 45mm bearing
Model Number: IRT4530/IKO
55 mm / 30.5 / 50mm bearing
Model Number: IRT5030-1/IKO
60 mm / 30.5 / 50mm bearing
Model Number: IRT5030/IKO
65 mm / 30.5 / 55mm bearing
Model Number: IRT5530/IKO
70 mm / 30.5 / 60mm bearing
Model Number: IRT6030/IKO
25 mm / 38.5 / 20mm bearing
Model Number: IRT2038-1/IKO
30 mm / 38.5 / 25mm bearing
Model Number: IRT2538-1/IKO
40 mm / 40.5 / 35mm bearing
Model Number: IRT3540/IKO
45 mm / 40.5 / 40mm bearing
Model Number: IRT4040/IKO
50 mm / 40.5 / 45mm bearing
Model Number: IRT4540/IKO
55 mm / 40.5 / 50mm bearing
Model Number: IRT5040-1/IKO
60 mm / 40.5 / 50mm bearing
Model Number: IRT5040/IKO
70 mm / 40.5 / 60mm bearing
Model Number: IRT6040/IKO
50 mm / 45.5 / 45mm bearing
Model Number: IRT4545/IKO
55 mm / 45.5 / 50mm bearing
Model Number: IRT5045-1/IKO
60 mm / 45.5 / 50mm bearing
Model Number: IRT5045/IKO
65 mm / 45.5 / 55mm bearing
Model Number: IRT5545/IKO
55 mm / 50.5 / 50mm bearing
Model Number: IRT5050-1/IKO
60 mm / 50.5 / 50mm bearing
Model Number: IRT5050/IKO
65 mm / 50.5 / 55mm bearing
Model Number: IRT5550/IKO
70 mm / 50.5 / 60mm bearing
Model Number: IRT6050/IKO
