M5 Jaw/jaw Swivel, 316 Stainless Steel - SJJA4M5
The price shown is for the box.
Available

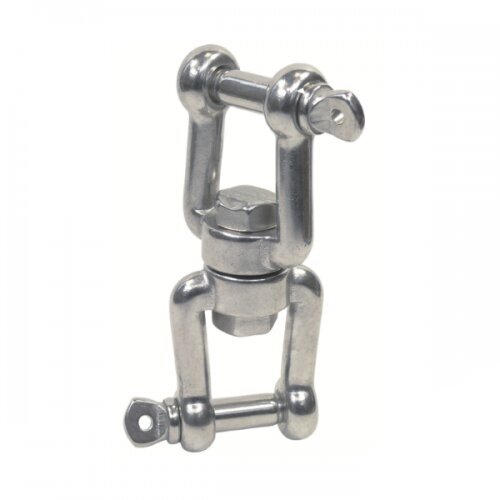

The Jaw-Jaw Swivel, 316 Stainless Steel is available in 4 sizes (M5 to M10) and is a swivel with a jaw at each end. The body turns so the line does not twist.
Made from 316 (A4) stainless steel, the grade normally specified for chloride-exposed work such as coastal installations, swimming pools, marine fittings and food-processing plant.
The range runs to 4 variants, covering sizes M5 to M10. Variants are supplied in packs of 5 to 10, depending on size.
In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.
Where this product is used
- Architectural work near the coast
- Marine rigging, boat and yacht fittings
- Coastal and marine installations
- Shade sails, awnings and tensioned structures
- Balustrade and wire fencing
Features
- Swivel body prevents line twist
- Pack quantities to suit trade and bulk buying: packs of 5 to 10
- A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
- Jaw at each end
- Range covers M5 to M10 in 4 variants
Key specifications
| Specification | Detail |
|---|---|
| Product | Jaw-Jaw Swivel |
| Type | Swivel with a jaw at each end |
| Material | A4 (316) stainless steel |
| Key features | Jaw at each end; Swivel body prevents line twist |
| Supplied in packs of | 5 to 10, by size |
| Number of variants | 4 |
| Size basis | Supplier's size code (the M prefix does not always mean a thread size) |
| Environment | Coastal, marine, pool and food-processing use |

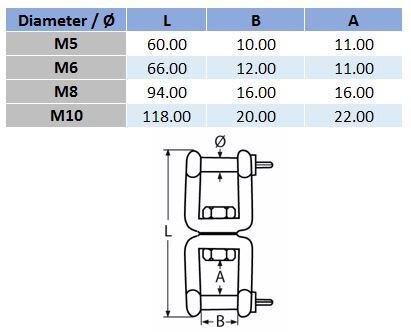

| Sizes | M5 to M10 |
Selecting the right option
Choose the swivel by the size shown on the variant.
Important
Do not use this product to lift or suspend people or loads unless it is marked with a working load limit (WLL). Rigging and lifting hardware should be selected, inspected and used in line with your site procedures and the relevant Australian Standards, and a qualified rigger should be consulted for any lift.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Jaw-Jaw Swivel - 316 Stainless Steel: M5
SKU: A0088168 | Model: SJJA4M5
SJJA4M5: M5 jaw/jaw swivel, 316 Stainless Steel. Sold in a box of 10. Suits marine rigging, boat and yacht fittings.
