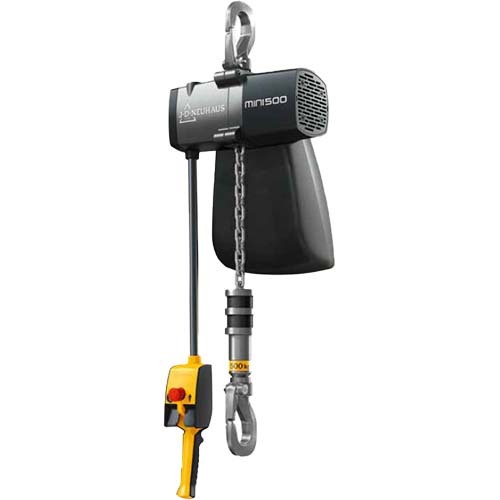

JDN Air Hoist Mini

• To meet the special demands of these sectors we introduce the JDN Air Hoists mini in “food grade” design.
• This includes a motor housing of uncoated cast aluminium, chain, chain inlet, load sleeve and hooks made of stainless steel.
• The minis will therefore be resistant to corrosion and high levels of humidity
• Easy to clean.
• Even high-pressure cleaners pose no problem. The motor will be lubricated by a physiologically safe fully synthetic (mineral oil-free) special grease, which is particularly suitable for the food and pharmaceutical industry.
• The chain lubricant is food-grade approved.
• Use of compressed air as a driving medium.
• The hoists are also explosion protected so that they can be used in areas where organically flammable chemical substances are handled.
• The hoists are fitted with twist-lock hooks (top and bottom) and available with 5 m height of lift and 4 m length of control

The Advantages:

•  Corrosion-resistant
• Resistant to high levels of humidity
• Easy to clean
• Suitable for high-pressure cleaners
• Ex-proof

*Measured in 1 m distance acc. to DIN 45635 part 20. Performance data at room temperature. Alterations reserved.

Specifications
mini 500
Air pressure, bar
6
Carrying capacity, kg
500
Number of chain strands,
1
Engine output at full load, kW
1
Lifting speed at full load, m/min
12.5
Lifting speed without load, m/min
20
Lowering speed at full load, m/min
20
Lowering speed without load, m/min
13
Air consumption at full load - Lifting, m3/min
1.7
Air consumption at full load - Lowering, m3/min
1.7
Air connection
G 1/2
Hose dimension (Diameter inside), mm
13
Weight at 5 m lift/ 4 m control length, kg
21.5
Chain dimension, mm
7.4 x 22
Weight of chain, kg/m
1.19
Height of lift, m
5
Length of control, m
4
Sound level at full load - lifting*, dB(A)
78
Sound level at full load - lowering*, dB(A)
80
ATEX Zone
2/22
Mechanism group/life cycle [h],
1 Am/800

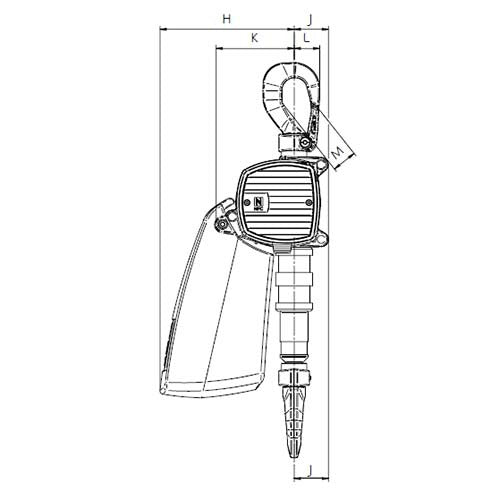

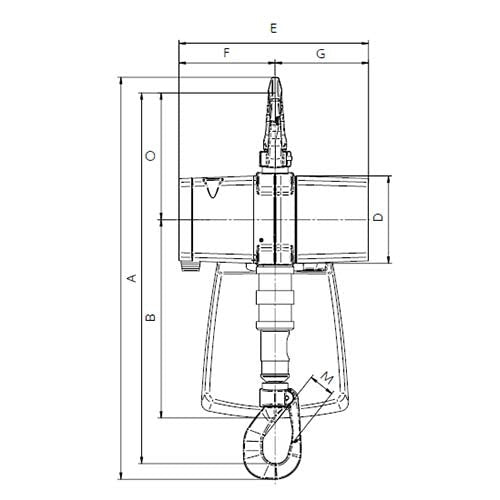

Dimensions (mm)
A
573
B
306
C
621
D
135
E
292
F
148
G
144
H
210
J
53
K
125
L
40
M
36
(N)
24
O
199
