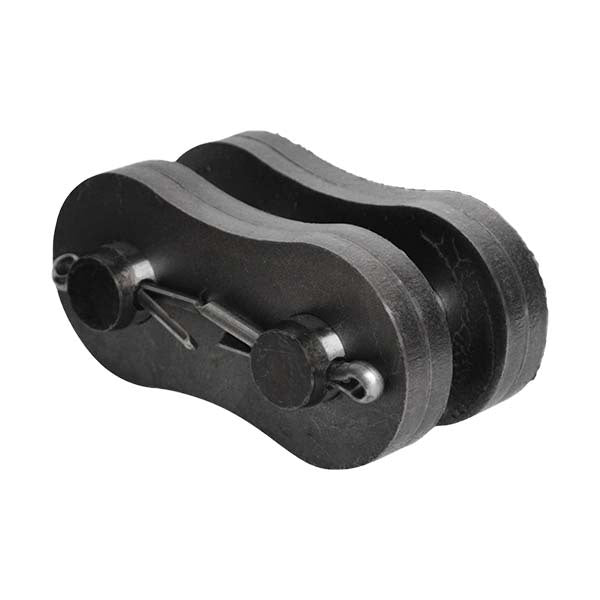

KCM AL Series Leaf Chain Connecting Link AL544-AL1266, AL544
Available
KCM connecting links join the ends of a length of leaf chain into a continuous loop. Match the link to the KCM chain with the same chain number, strand count and series (A0067077).
Where this product is used
- Load lifting and balancing
- Counterbalance arrangements with smooth loads
Features
- Matched to the KCM chain of the same number and series
- Joins the chain ends into a continuous loop
- AL type is KCM leaf chain for light loading
- Used where there is no impact and up to 100 repetitions a day
- Simple construction of plates and pins
Key specifications
| Specification | Detail |
|---|---|
| Brand | KCM |
| Product type | Connecting Link (Full Link) |
| Series | AL Leaf Chain |
| Component | Connecting link |
| Chain sizes | AL544-AL1266 (7) |
| Pitch | 15.875 to 38.1mm |
| Supplied as | Individual links |
Choosing the right option
AL leaf chain suits applications without impact and with daily repetition of 100 times or less. Use the BL type for heavier loading. Use roller chain where chain speed is over 30 m/min or daily repetitions exceed 1000.
Related KCM products: KCM AL Series Leaf Chain AL544-AL1266, 10 ft Box.
| Option | SKU |
|---|---|
| AL544 | A0067077 |
| AL566 | A0067078 |
| AL644 | A0067079 |
| AL666 | A0067080 |
| AL844 | A0067082 |
| AL866 | A0067083 |
| AL1266 | A0159138 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
KCM AL Series Leaf Chain Connecting Link AL544-AL1266: AL544
SKU: A0067077 | Model: AL544-CL/KCM
KCM AL544 leaf chain connecting link, 5/8" pitch.
