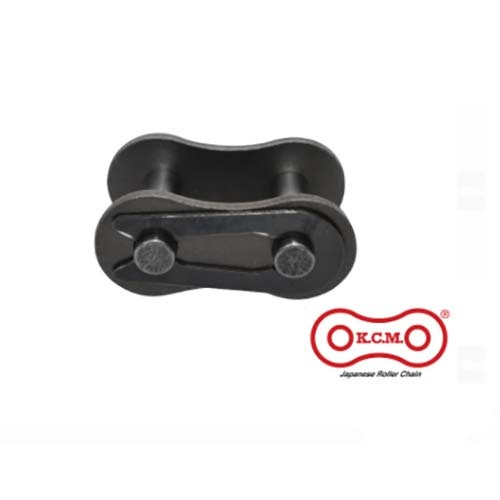

KCM Roller Chain Connecting Link Self Lubricating

The KCM lubrication-free chain-link uses special oil-impregnated bushing for self-lubrication, achieving maintenance-free. Use this chain-link when no lubrication is required or difficult lubrication in the process is expected.

• Suit for KCM Roller Chain Self Lubricating
• Made of thick sintered bushings that impregnate plenty of oil
• Recommended chain speed is 150m/min or slower
• Ordinary operating temperature range of -10°C to +150°C
• Available in different chain numbers: 40SL-CL, 50SL-CL, 60SL-CL

Operating Notes to Self Lubricating Chains/Chain-links

• In a dusty environment, there is a possibility that premature wear can occur.
• If the chain is exposed to water, oil impregnated in bushing will come out, thus promoting wear.
• If oil comes out completely from bushing, rapid wear is caused, shortening service life.

About KCM

KCM is an exclusive roller chain manufacturer certified by ISO 9001 (International Quality Management and Assurance Standard). Using state-of-the-art manufacturing and quality assurance technology, KCM strives to maintain its world-recognized quality products. KCM roller drives are used in a broad range of industries for the transmission and driving of various equipment.

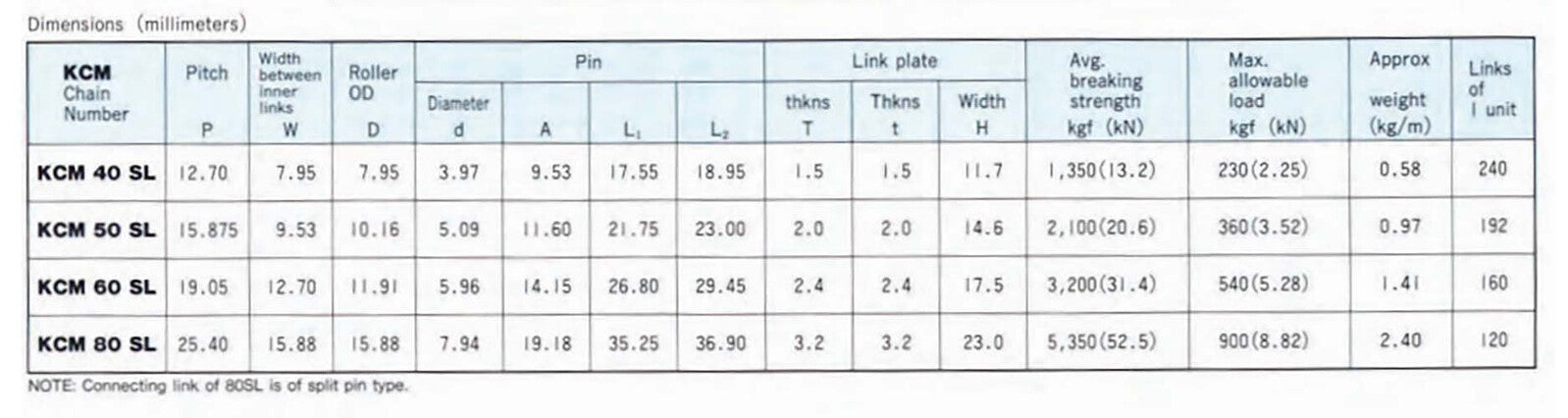

AIMS Industrial Supplies is an authorised roller chain supplier in Australia. If you need assistance in selecting the right chain links, please refer to the dimensions or contact our office.
