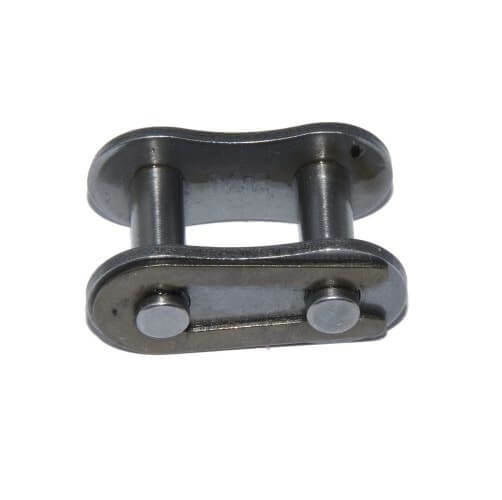

KCM 100 ASA Roller Chain Connecting Link Simplex, 1-1/4 in Pitch

KCM connecting links join the ends of a length of ASA simplex roller chain into a continuous loop. Match the link to the KCM chain with the same chain number, strand count and series.

AIMS Industrial supplies these links individually. This listing covers 11 sizes (25-200).

Where this product is used

• General power transmission drives
• Conveyor and material handling drives
• Agricultural and farm machinery
• Replacing worn or broken chain on existing drives

Features

• Matched to the KCM chain of the same number and series
• Joins the chain ends into a continuous loop
• Sizes to JIS and ANSI roller chain dimensions as listed in the KCM catalogue
• Riveted construction; split-pin (cotter) construction is listed for sizes 80 and larger
• Connecting links for 25 to 60 are clip type; 80 and larger use split pins

Key specifications

Available sizes

Selecting the right option

For ASA chain the number is the pitch in eighths of an inch: 40 is 4/8 in (1/2 in), 60 is 6/8 in (3/4 in), 100 is 10/8 in (1-1/4 in). The figure after the dash is the number of strands.

This is KCM standard (carbon steel) chain. Step up to H-type where loads are heavier, or to stainless steel, nickel plated or self-lube chain where the environment or lubrication calls for it.

Fitting and use

KCM lists clip-type connecting links for sizes 25 to 60 (open and closed clips for 40, 50 and 60) and split-pin type for 80 and larger. Fit the clip or split pin the way KCM shows in its catalogue.

KCM says not to replace damaged parts of a chain with new ones. Replace the whole chain, and check the sprockets when changing chain.

Check that a safety cover is fitted before running a chain drive.
