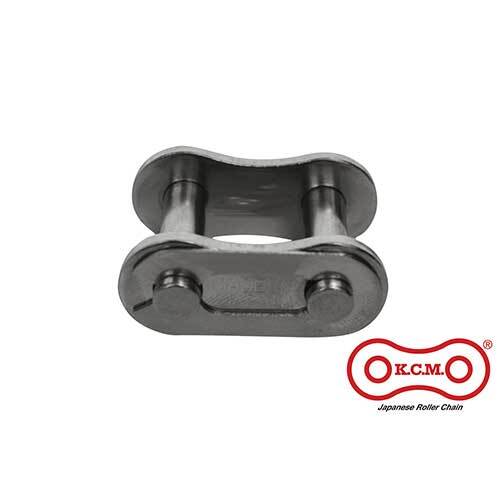

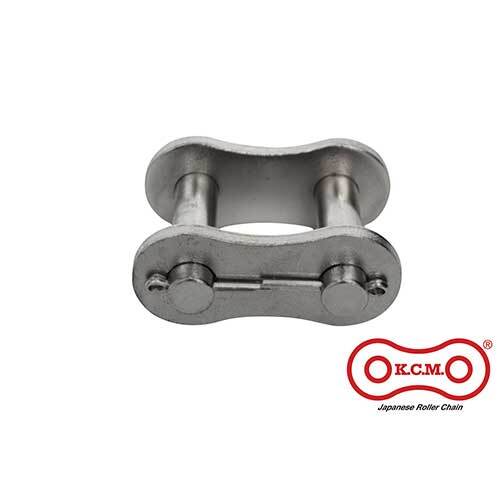

KCM Stainless Steel ASA Roller Chain Connecting Link

KCM connecting links join the ends of a length of ASA stainless steel simplex roller chain into a continuous loop. Match the link to the KCM chain with the same chain number, strand count and series. Made entirely of SUS304 (18Cr-8Ni) austenitic stainless steel.

Where this product is used

• Corrosive environments
• Hot environments and areas that need clean chain
• Wet and washdown areas where carbon steel would corrode

Features

• Matched to the KCM chain of the same number and series
• Joins the chain ends into a continuous loop
• Made entirely of SUS304 (18Cr-8Ni) austenitic stainless steel
• Operating range -20 to +400°C
• Slightly magnetic as a result of cold manufacturing

Key specifications

Choosing the right option

For ASA chain the number is the pitch in eighths of an inch: 40 is 4/8" (1/2"), 60 is 6/8" (3/4"), 100 is 10/8" (1-1/4"). The figure after the dash is the number of strands.

Choose stainless steel chain where corrosion, heat or cleanliness rules out carbon steel. A strengthened AS stainless chain is also available, with a maximum allowable load 1.5 times that of standard SS.
