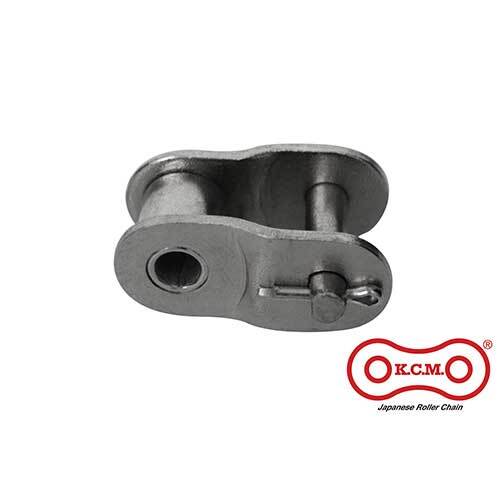

KCM Stainless Steel ASA Offset Link Simplex 25SS-80SS

KCM offset links (half links) let a length of ASA stainless steel simplex roller chain be made up with an odd number of pitches. Match the link to the KCM chain with the same chain number, strand count and series. Made entirely of SUS304 (18Cr-8Ni) austenitic stainless steel.

Where this product is used

• Corrosive environments
• Hot environments and areas that need clean chain
• Wet and washdown areas where carbon steel would corrode

Features

• Matched to the KCM chain of the same number and series
• Lets a chain be made up with an odd number of pitches
• Made entirely of SUS304 (18Cr-8Ni) austenitic stainless steel
• Operating range -20 to +400°C
• Slightly magnetic as a result of cold manufacturing

Key specifications

Choosing the right option

For ASA chain the number is the pitch in eighths of an inch: 40 is 4/8" (1/2"), 60 is 6/8" (3/4"), 100 is 10/8" (1-1/4"). The figure after the dash is the number of strands.

Choose stainless steel chain where corrosion, heat or cleanliness rules out carbon steel. A strengthened AS stainless chain is also available, with a maximum allowable load 1.5 times that of standard SS.

Related KCM products: KCM Stainless Steel ASA Roller Chain Simplex 25SS-80SS, 10 ft Box, KCM Stainless Steel ASA Cottered Roller Chain Connecting Link Simplex 80SS, 1" Pitch, KCM Stainless Steel ASA Roller Chain Connecting Link Simplex 25SS-80SS.
