KCM BS Roller Chain Offset Link (Half Link) Simplex 05B-32B
Available
This is the KCM BS Roller Chain Offset Link (Half Link) Simplex 05B-32B.
KCM offset links (half links) let a length of BS simplex roller chain be made up with an odd number of pitches. Match the link to the KCM chain with the same chain number, strand count and series (A0067304).
Where this product is used
- General power transmission drives
- Conveyor and material handling drives
- Agricultural and farm machinery
- Replacing worn or broken chain on existing drives
Features
- Matched to the KCM chain of the same number and series
- Lets a chain be made up with an odd number of pitches
- Conforms to ISO 606-B, for Europe-built equipment
- Two-pitch offset links for sizes 03, 04 and 05B
Key specifications
| Specification | Detail |
|---|---|
| Brand | KCM |
| Product type | Offset Link (Half Link) |
| Standard | BS (ISO 606) |
| Series | Standard |
| Strands | Simplex |
| Component | Offset link (half link) |
| Chain sizes | 05B-32B (10) |
| Pitch | 8 to 38.1mm |
| Supplied as | Individual links |
Choosing the right option
For BS chain the number is the pitch in sixteenths of an inch: 08B is 8/16" (1/2"), 12B is 12/16" (3/4"), 16B is 1". The figure after the dash is the number of strands.
This is KCM standard (carbon steel) BS chain. Stainless steel BS chain (05B to 16B) is also available where corrosion, heat or cleanliness rules out carbon steel.
Related KCM products: KCM BS Roller Chain Simplex 05B-32B, 10 ft Box, KCM BS Roller Chain Simplex 06B-16B, 50 and 100 ft Boxes, KCM X-Ring BS Roller Chain Simplex 08B-16B, 10 ft Box, KCM BS Roller Chain Connecting Link Simplex 05B-32B.
| Option | SKU |
|---|---|
| 05B | A0067304 |
| 06B | A0067306 |
| 08B | A0067309 |
| 10B | A0067312 |
| 12B | A0067315 |
| 16B | A0067318 |
| 20B | A0067321 |

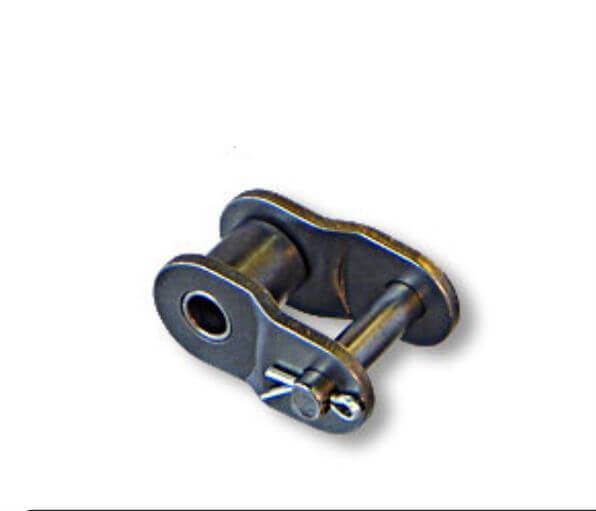

| 24B | A0067324 |
| 28B | A0067327 |
| 32B | A0067329 |
Product details
| Model | 05B-1OL/KCM |
|---|---|
| Chain Number | 05B |
| Series | Standard |
| Standard | BS (ISO 606) |
| Strands | Simplex |
| Component | Offset link (half link) |
| Chain Pitch | 8mm |
| Suits Chain | 05B |
| Pitch P (mm) | 8 |
| Width Between Inner Plates W (mm) | 3 |
| Roller Diameter D (mm) | 5 |
| Pin Diameter d (mm) | 2.31 |
| Link Plate Thickness T (mm) | 0.75 |
| Link Plate Height H (mm) | 7.1 |
| Transverse Pitch C (mm) | 5.64 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

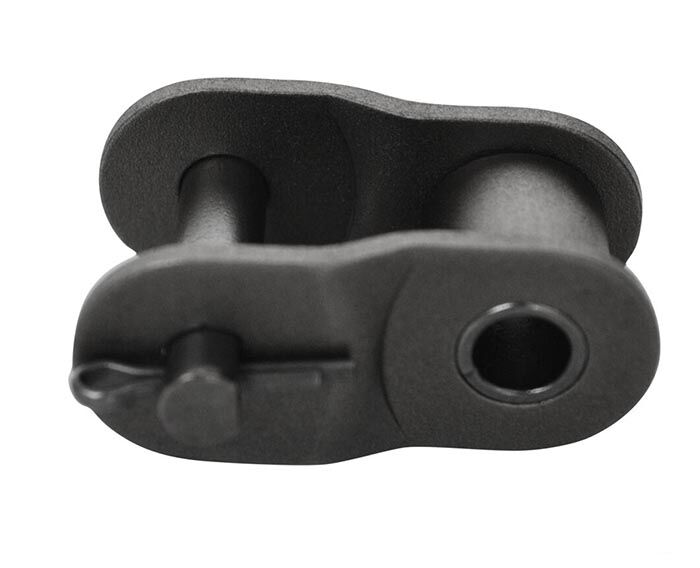

KCM BS Roller Chain Offset Link (Half Link) Simplex 05B-32B: 05B
SKU: A0067304 | Model: 05B-1OL/KCM
KCM 05B BS simplex roller chain offset link, 8mm pitch.
