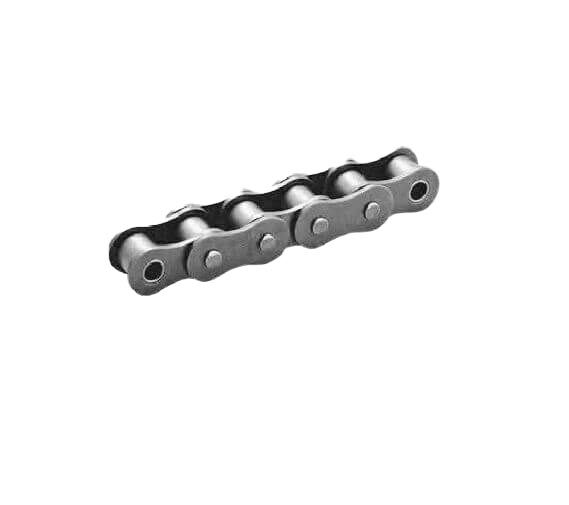

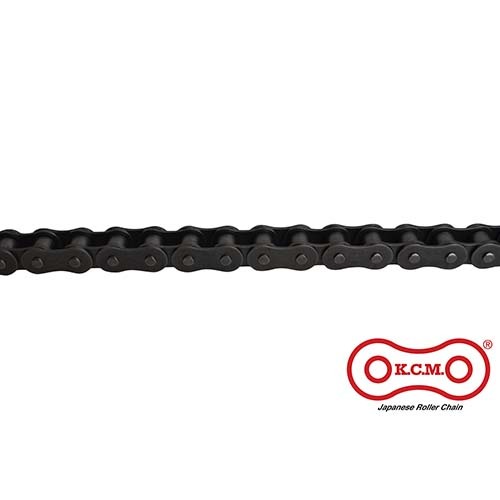

KCM BS Roller Chain Simplex 05B-32B, 05B
Available
BS simplex roller chain from KCM. BS-series chain has the ISO 606 minimum tensile strength alongside KCM's own minimum (A0067237).
Where this product is used
- General power transmission drives
- Conveyor and material handling drives
- Agricultural and farm machinery
- Replacing worn or broken chain on existing drives
Features
- Conforms to ISO 606-B, for Europe-built equipment
- Spring-type connecting links for 03 to 12B and split-pin type for 16B to 24B
- Two-pitch offset links for sizes 03, 04 and 05B
- Standard: BS (ISO 606)

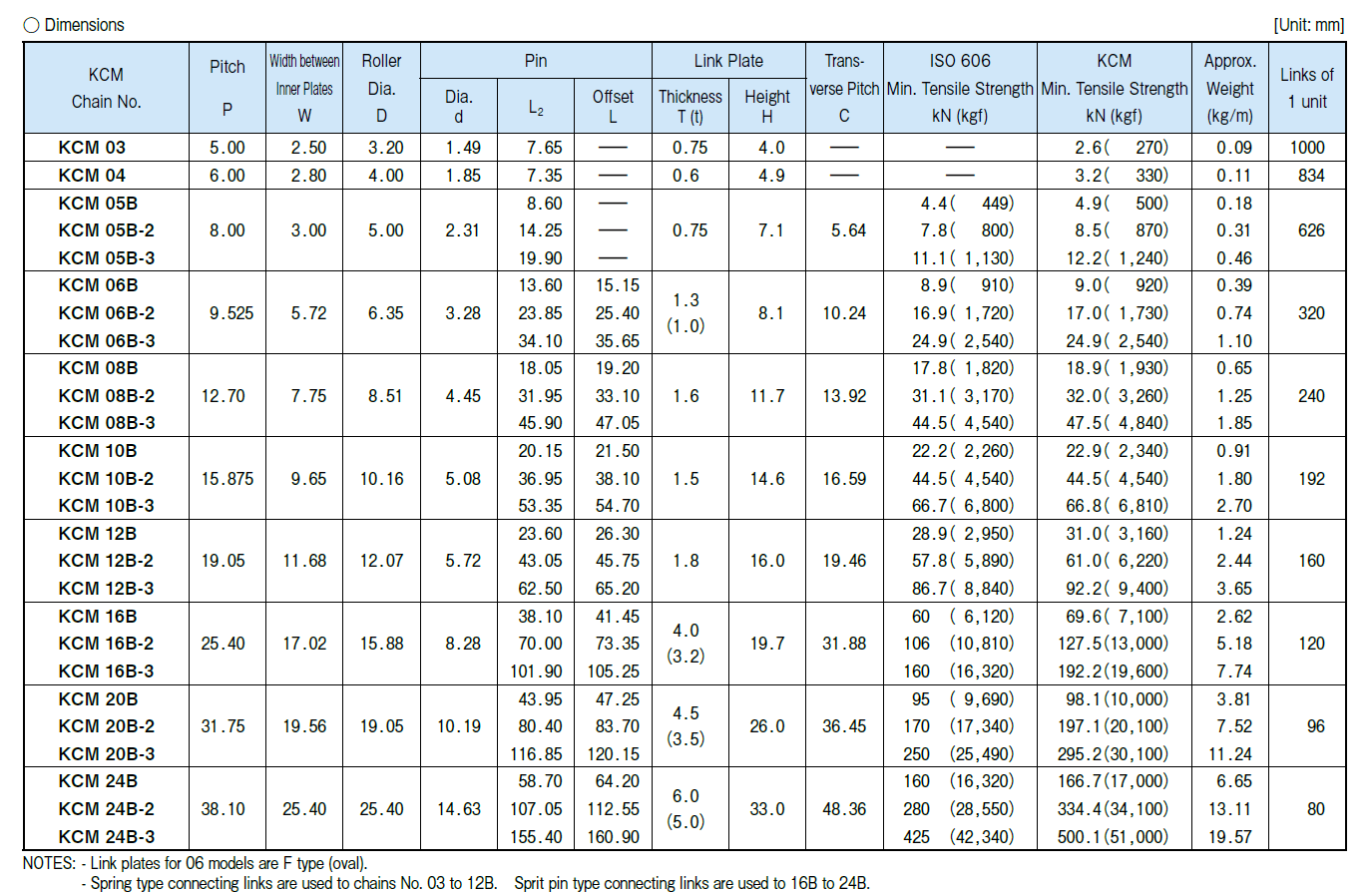

Key specifications
| Specification | Detail |
|---|---|
| Brand | KCM |
| Product type | Roller Chain |
| Standard | BS (ISO 606) |
| Series | Standard |
| Strands | Simplex |
| Component | Roller chain |
| Chain sizes | 05B-32B (10) |
| Pitch | 8 to 38.1mm |
| KCM minimum tensile strength | 4.9 to 166.7 kN |
| Supplied as | 10 ft (3.05 m) box |
Choosing the right option
For BS chain the number is the pitch in sixteenths of an inch: 08B is 8/16" (1/2"), 12B is 12/16" (3/4"), 16B is 1". The figure after the dash is the number of strands.
This is KCM standard (carbon steel) BS chain. Stainless steel BS chain (05B to 16B) is also available where corrosion, heat or cleanliness rules out carbon steel.
Related KCM products: KCM BS Roller Chain Connecting Link Simplex 05B-32B, KCM X-Ring BS Roller Chain Connecting Link Simplex 08B-16B, KCM BS Roller Chain Offset Link (Half Link) Simplex 05B-32B.
| Option | SKU |
|---|---|
| 05B | A0067237 |
| 06B-1 | A0067239 |
| 08B-1 | A0067243 |
| 10B-1 | A0067247 |
| 12B-1 | A0067252 |
| 16B-1 | A0067257 |
| 20 | A0067261 |
| 24B-1 | A0067264 |
| 28B | A0067267 |
| 32B | A0067269 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
KCM BS Roller Chain Simplex 05B-32B, 10 ft Box: 05B
SKU: A0067237 | Model: 05B-1/KCM
KCM 05B BS simplex roller chain, 8mm pitch, 4.9 kN KCM minimum tensile strength, 10 ft box.
