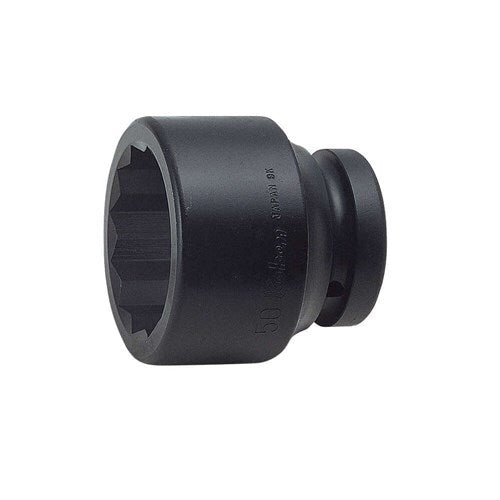

Ko-Ken 18405A 12-point impact socket, size 1
Out of stock
Ko-Ken 18405A is a 12-point impact socket with a 1" square drive. Sizes run from 3/4 to 1-15/16". Lengths are 57 to 70mm.
Where this product is used
- Turning inch nuts and bolts with a 1" drive impact wrench
- Workshop, maintenance and assembly work on exposed fasteners
- Heavy equipment and plant maintenance
Features
- 1" square drive
- 12-point (bi-hexagon) opening
- Retaining pin and O-ring or C-ring parts for each size
- Length: 57 to 70mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Ko-Ken |
| Product type | Impact Socket |
| Drive | 1" |
| Opening | 12-point |
| Length | 57 to 70mm |
| Weight | 590 to 1,208 g |
| Pin / O-ring / C-ring | A81 / B81 / C81, A82 / B82 / C82 |
Choosing the right option
Match the 1" square drive to your impact wrench, then choose the size that fits the fastener. Dimension labels: D1, D2 and H. Retaining parts for these sockets: pin A81 with O-ring B81 or C-ring C81; pin A82 with O-ring B82 or C-ring C82. The part for each size is shown in its specifications. Select impact sockets only for electric or air impact wrenches, wear safety goggles when using nut runners or impact wrenches, never substitute a hand socket for an impact socket, and replace sockets with cracked walls, battered points or other marks of wear.
Related Ko-Ken products: Ko-Ken 18400A 6-Point Impact Socket, Inch Sizes, 1" Drive, Ko-Ken 18300A 6-Point Deep Impact Socket, Inch Sizes, 1" Drive, Ko-Ken 18405M 12-Point Impact Socket, Metric Sizes, 1" Drive, Ko-Ken Impact Socket Spare Pin.
| Option | Part number | SKU |
|---|---|---|
| 1 | KO18405A32 | A0181580 |
| 1-1/2" | KO18405A48 | A0181586 |
| 1-1/4" | KO18405A40 | A0181583 |
| 1-1/8" | KO18405A36 | A0181581 |
| 1-3/4" | KO18405A56 | A0181587 |
| 1-3/8" | KO18405A44 | A0181584 |
| 1-3/16" | KO18405A38 | A0181582 |
| 1-7/16" | KO18405A46 | A0181585 |
| 1-15/16" | KO18405A62 | A0181588 |
| 3/4" | KO18405A24 | A0181578 |
| 7/8" | KO18405A28 | A0181579 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Ko-Ken 18405A 12-Point Impact Socket, Inch Sizes, 1 in Drive: 1
SKU: A0181580 | Model: KO18405A32
Ko-Ken KO18405A32: 12-point impact socket, 1". 1" drive, 57mm long, 620 g. Dimensions: D1 42.8, D2 54, H 16mm.
