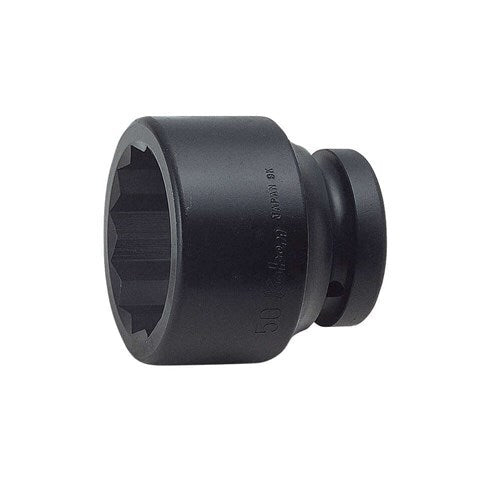

Ko-Ken 18405M 12-point impact socket, 24mm
Available
Ko-Ken 18405M is a 12-point impact socket with a 1" square drive. Sizes run from 24 to 80mm. Lengths are 57 to 85mm.
Where this product is used
- Turning metric nuts and bolts with a 1" drive impact wrench
- Workshop, maintenance and assembly work on exposed fasteners
- Heavy equipment and plant maintenance
Features
- 1" square drive
- 12-point (bi-hexagon) opening
- Retaining pin and O-ring or C-ring parts for each size
- Size: 24 to 80mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Ko-Ken |
| Product type | Impact Socket |
| Drive | 1" |
| Opening | 12-point |
| Size | 24 to 80mm |
| Length | 57 to 85mm |
| Weight | 600 to 2,996 g |
| Pin / O-ring / C-ring | A81 / B81 / C81, A82 / B82 / C82, A83 / B83 / C83 |
Choosing the right option
Match the 1" square drive to your impact wrench, then choose the size that fits the fastener. Dimension labels: D1, D2 and H. Retaining parts for these sockets: pin A81 with O-ring B81 or C-ring C81; pin A82 with O-ring B82 or C-ring C82; pin A83 with O-ring B83 or C-ring C83. The part for each size is shown in its specifications. Select impact sockets only for electric or air impact wrenches, wear safety goggles when using nut runners or impact wrenches, never substitute a hand socket for an impact socket, and replace sockets with cracked walls, battered points or other marks of wear.
Related Ko-Ken products: Ko-Ken 18400M 6-Point Impact Socket, Metric Sizes, 1" Drive, Ko-Ken 18300M 6-Point Deep Impact Socket, Metric Sizes, 1" Drive, Ko-Ken 18405A 12-Point Impact Socket, Inch Sizes, 1" Drive, Ko-Ken Impact Socket Spare Pin.
| Option | Part number | SKU |
|---|---|---|
| 24 | KO18405M24 | A0119679 |
| 27 | KO18405M27 | A0119680 |
| 30 | KO18405M30 | A0119681 |
| 32 | KO18405M32 | A0119682 |
| 33 | KO18405M33 | A0119683 |
| 35 | KO18405M35 | A0119684 |
| 36 | KO18405M36 | A0119685 |
| 38 | KO18405M38 | A0119686 |
| 40 | KO18405M40 | A0119687 |
| 41 | KO18405M41 | A0119688 |
| 46 | KO18405M46 | A0119689 |
| 50 | KO18405M50 | A0119690 |
| 55 | KO18405M55 | A0119691 |
| 56 | KO18405M56 | A0119692 |
| 60 | KO18405M60 | A0119693 |
| 65 | KO18405M65 | A0119694 |
| 70 | KO18405M70 | A0181689 |
| 75 | KO18405M75 | A0181690 |
| 80 | KO18405M80 | A0181691 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Ko-Ken 18405M 12-Point Impact Socket, Metric Sizes, 1 in Drive: 24
SKU: A0119679 | Model: KO18405M24
Ko-Ken KO18405M24: 12-point impact socket, 24mm. 1" drive, 57mm long, 600 g. Dimensions: D1 41.5, D2 54, H 16mm.
