Ko-Ken 14770 to 18770 impact universal joint, 65mm
Available
Ko-Ken 14770 to 18770 are impact universal joints with square drives of 1/2", 3/4", 1" and 1-1/2". Lengths are 65 to 200mm.
Where this product is used
- Working at an angle to the fastener where a straight drive will not reach
- Reaching fasteners offset from the handle in confined engine bays and machinery
- Maintenance and repair work with square drive sockets
Features
- Square drives: 1/2", 3/4", 1" and 1-1/2"
- Drive: 1/2", 3/4", 1", 1-1/2"
- Type: Hole, Ball, Pin
- Length: 65 to 200mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Ko-Ken |
| Product type | Universal Joint |
| Drive | 1/2", 3/4", 1", 1-1/2" |
| Type | Hole, Ball, Pin |
| Length | 65 to 200mm |
| Weight | 198 to 4,700 g |
Choosing the right option
Match the square drive to your sockets and handle. The 13772 and 14772 double joints have less load capacity than standard, so use them with care.
Related Ko-Ken products: Ko-Ken 2770, 2771, 3770, 3771, 6770 and 8770 Universal Joint, 1/4, 3/8, 3/4 and 1" Drive, Ko-Ken 18771 Impact Universal Joint, 1" Drive, 115mm, Ko-Ken 4445A 12-Point Universal Socket, Inch Sizes, Ko-Ken 2760, 3760, 4760, 6760 and 8760 Extension Bar, 1/4, 3/8, 1/2, 3/4 and 1" Drive.
| Option | Part number | SKU |
|---|---|---|

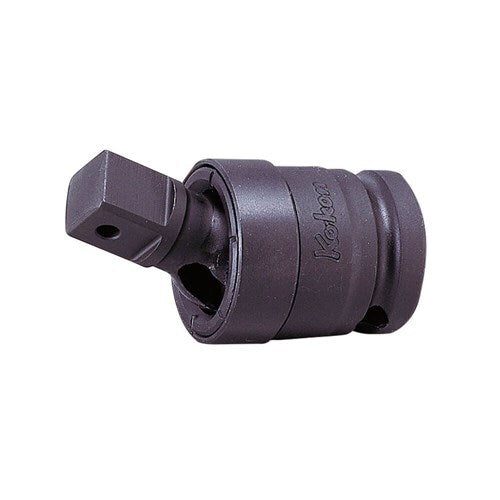

| 65mm | KO14771 | A0182864 |

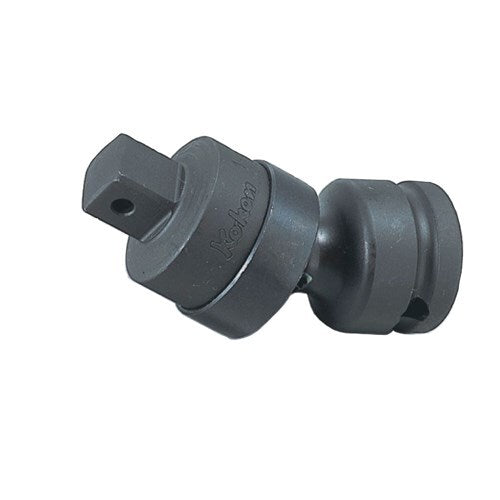

| 74mm | KO14770 | A0178009 |
| 74mm-KO14770-B | KO14770-B | A0178010 |

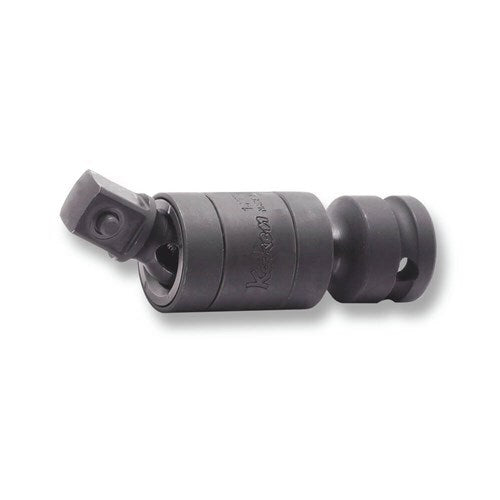

| 90mm | KO14772-P | A0190719 |

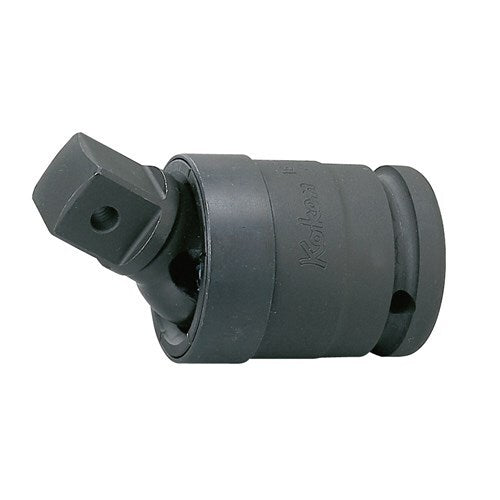

| 95mm | KO16771 | A0190718 |

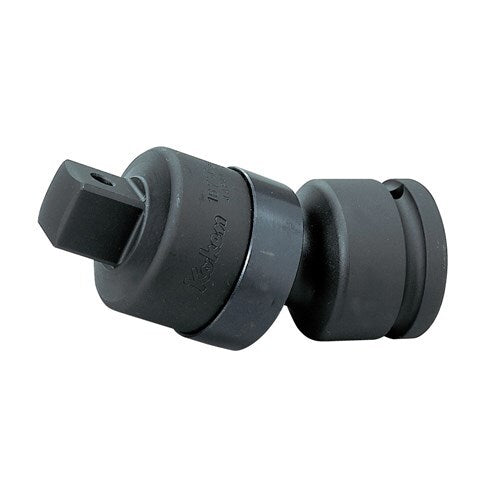

| 106mm | KO16770 | A0178265 |

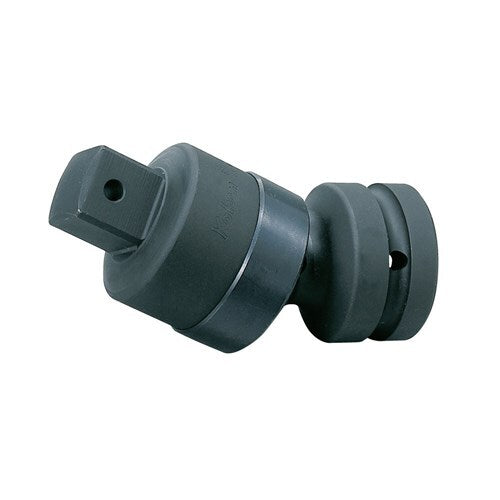

| 127mm | KO18770 | A0178011 |

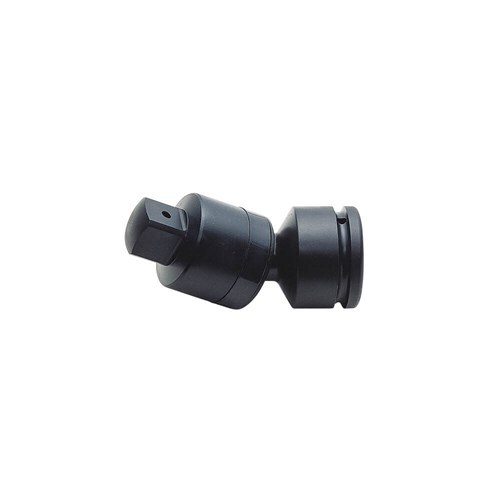

| 200mm | KO17770 | A0182865 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Ko-Ken 14770 to 18770 Impact Universal Joint, 1/2, 3/4, 1 and 1-1/2 in Drive: 65mm
SKU: A0182864 | Model: KO14771
Ko-Ken KO14771: impact universal joint. 1/2" drive, Hole type, 65mm long, 198 g.
