Ko-Ken 2772Z, 1/2"
Available
Ko-Ken 2772Z, 3772Z and 4772Z are Z-series universal double joints with square drives of 1/4", 3/8" and 1/2". Lengths are 46, 65 and 87.2mm.
Where this product is used
- Working at an angle to the fastener where a straight drive will not reach
- Reaching fasteners around obstructions, with two joints in the one tool
- Maintenance and repair work with square drive sockets
Features
- Square drives: 1/4", 3/8" and 1/2"
- Double joint
- Z-series model
- Drive: 1/4", 3/8", 1/2"
Key specifications
| Specification | Detail |
|---|---|
| Brand | Ko-Ken |
| Product type | Universal Joint |
| Drive | 1/4", 3/8", 1/2" |
| Length | 46 to 87.2mm |

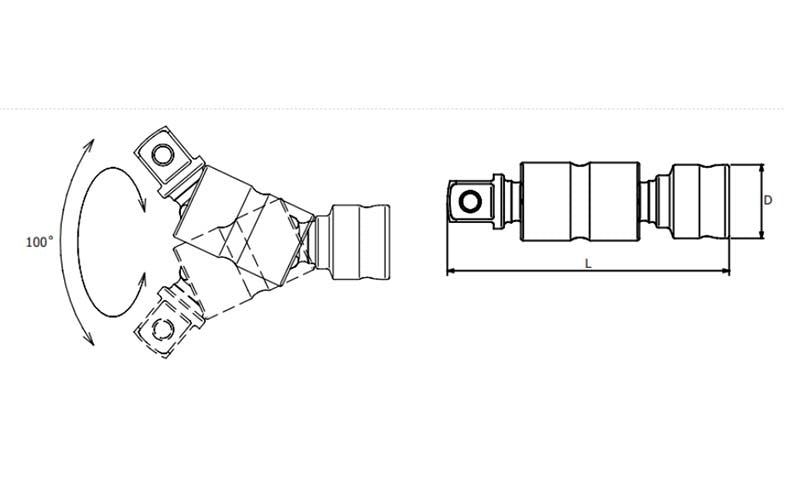

| Dimension D | 11.7 to 23.7mm |
| Weight | 26 to 170 g |
Choosing the right option
Match the square drive to your sockets and handle.
Related Ko-Ken products: Ko-Ken 2771Z, 3771Z and 4771Z Z-Series Universal Joint, 1/4, 3/8 and 1/2" Drive, Ko-Ken 2770, 2771, 3770, 3771, 6770 and 8770 Universal Joint, 1/4, 3/8, 3/4 and 1" Drive, Ko-Ken 13770 Impact Universal Joint, 3/8" Drive, Ko-Ken 2763, 3763 and 4763 Wobble-Fix Extension Bar, 1/4, 3/8 and 1/2" Drive.
| Option | Part number | SKU |
|---|---|---|
| 1/2 | KO4772Z | A0177627 |

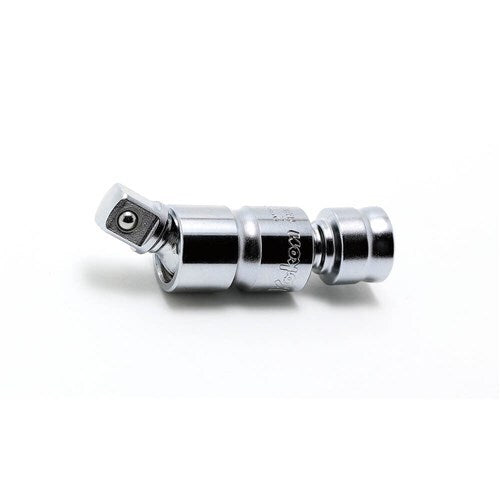

| 1/4 | KO2772Z | A0186656 |
| 3/8 | KO3772Z | A0186655 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Ko-Ken 2772Z, 3772Z and 4772Z Z-Series Universal Double Joint, 1/4, 3/8 and 1/2 in Drive: 1/2
SKU: A0177627 | Model: KO4772Z

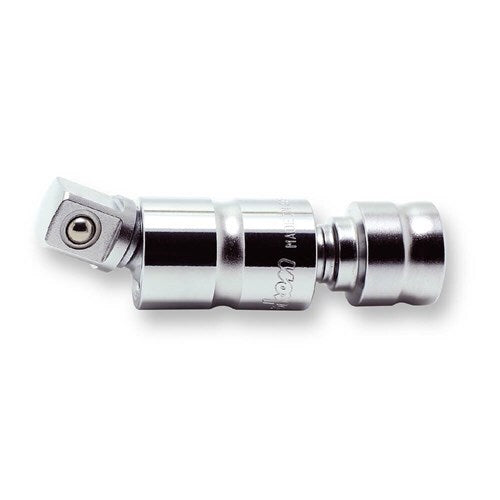

Ko-Ken KO4772Z: Z-series universal double joint. 1/2" drive, 87.2mm long, 170 g. Dimension D: 23.7mm.
