L100 Series Taper Lock Imperial Timing Belt Pulley
L100 Series Taper Lock Imperial Timing Belt Pulley - additional product view 2
L100 Series Taper Lock Imperial Timing Belt Pulley
L100 Series Taper Lock Imperial Timing Belt Pulley - additional product view 2

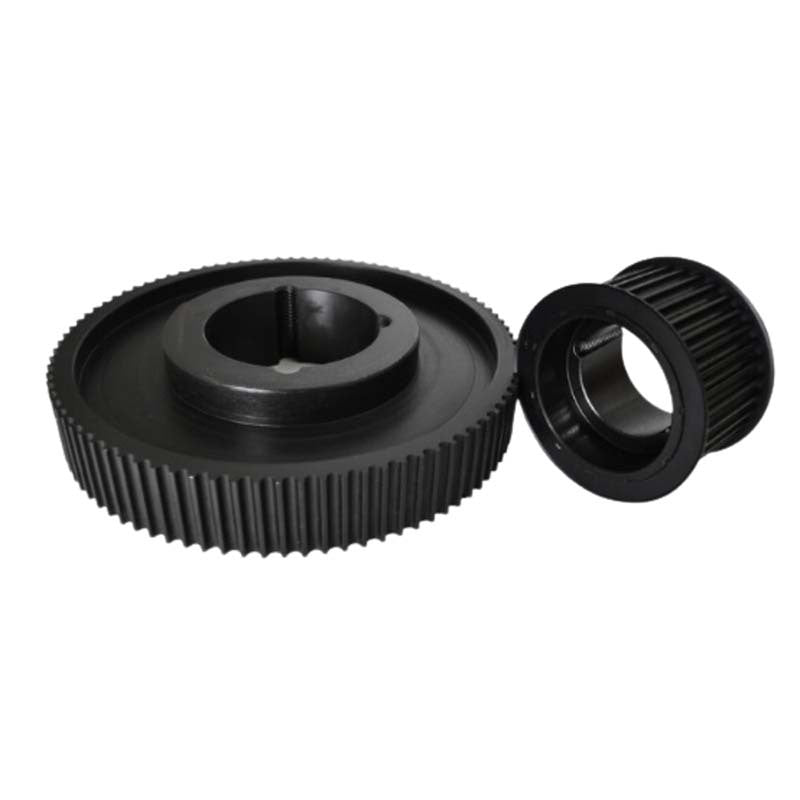

Finer Power l100 Taper Lock Timing Pulley 18-L-100TL

$40.99
$40.99
Inc. GST

Available

These are L100 taper lock timing pulleys for L section imperial timing belts. L belts have a pitch of 3/8" (9.525mm), and the 100 in the L100 code is the belt width, 1". The range covers 22 models from 18 to 120 teeth.

Each pulley has a tapered bore that takes a taper lock bush. The bush is machined to your shaft size and keyway, and it clamps the pulley to the shaft when its screws are tightened. The pulleys are made in steel for 18 to 60 teeth and grey cast iron for 72 to 120 teeth.

Where this product is used

  • Synchronous drives where the driven shaft must keep in step with the driver
  • Indexing and positioning drives
  • Conveyor and material handling drives
  • Packaging and automation machinery
  • Replacement pulleys on existing L section timing belt drives

Features

  • Taper lock hub that takes a separately sold taper lock bush
  • Teeth cut for L section belts, 1" wide: 18 to 120 teeth
  • Bush series 1108, 1210, 1610 and 2012, with the maximum bore of each bush
  • Pitch diameter, outside diameter and face width for every model

Key specifications

Specification Detail
Belt section L, 3/8" (9.525mm) pitch
Belt width 1"
Teeth 18 to 120
Pitch diameter 54.57 to 363.83mm
Outside diameter 53.81 to 363.07mm
Material Steel for 18 to 60 teeth and grey cast iron for 72 to 120 teeth
Bore type Taper lock (bush sold separately)
Bush series 1108, 1210, 1610, 2012
Maximum bore 28 to 50mm (depends on the bush)
Face width 31 to 32mm

Sizes available

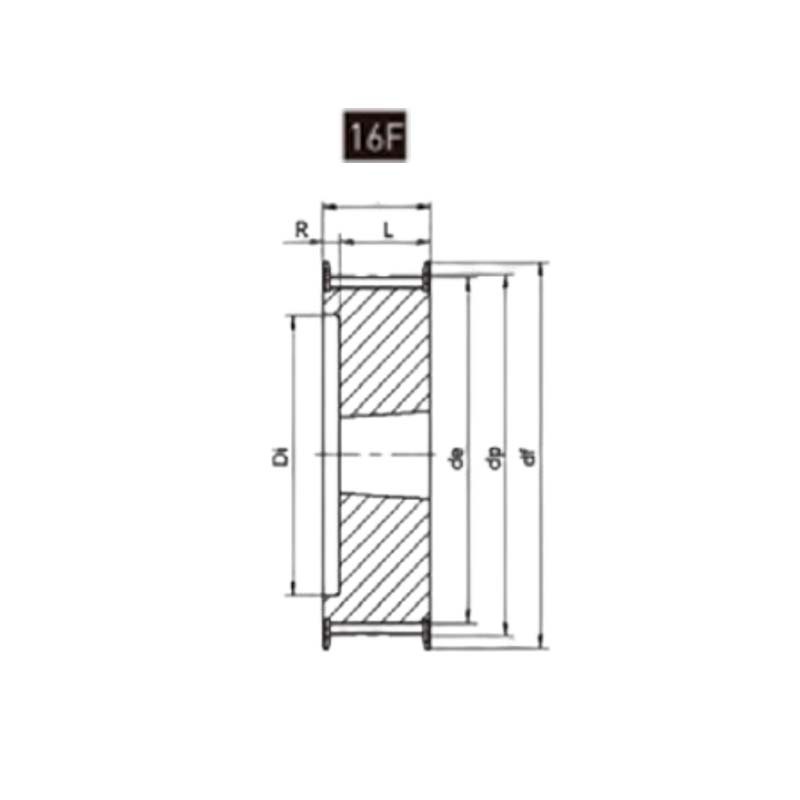

Model Teeth Material Bush Max bore (mm) Pitch dia. (mm) Outside dia. (mm) Face width (mm) Flange dia. (mm)
18-L-100TL 18 Steel 1108 28 54.57 53.81 31 60
19-L-100TL 19 Steel 1108 28 57.61 56.84 31 63
20-L-100TL 20 Steel 1108 28 60.64 59.88 31 66
21-L-100TL 21 Steel 1108 28 63.67 62.91 31 71
22-L-100TL 22 Steel 1108 28 66.7 65.94 31 75
23-L-100TL 23 Steel 1108 28 69.73 68.97 32 79
24-L-100TL 24 Steel 1108 28 72.77 72 32 79
25-L-100TL 25 Steel 1108 28 75.8 75.04 32 83
26-L-100TL 26 Steel 1108 28 78.83 78.07 32 87
27-L-100TL 27 Steel 1108 28 81.86 81.1 32 87
28-L-100TL 28 Steel 1108 28 84.89 84.13 32 91
30-L-100TL 30 Steel 1210 32 90.96 90.2 32 97
32-L-100TL 32 Steel 1210 32 97.02 96.26 32 103
36-L-100TL 36 Steel 1610 42 109.15 108.39 32 115
40-L-100TL 40 Steel 1610 42 121.28 120.52 32 123
44-L-100TL 44 Steel 1610 42 133.4 132.64 32 140
48-L-100TL 48 Steel 1610 42 145.53 144.77 32 152
60-L-100TL 60 Steel 1610 42 181.91 181.15 32 -
72-L-100TL 72 Grey Cast Iron 2012 50 218.3 217.53 32 -
84-L-100TL 84 Grey Cast Iron 2012 50 254.68 253.9 32 -
96-L-100TL 96 Grey Cast Iron 2012 50 291.06 290.3 32 -
120-L-100TL 120 Grey Cast Iron 2012 50 363.83 363.07 32 -

Choosing the right option

Choose the pulley by belt section (L), belt width (1") and number of teeth. Divide the driven teeth by the driver teeth to find the speed ratio. Both pulleys on a drive must have the same tooth pitch as the belt.

Then choose the bush. Order a bush of that series with the bore and keyway you need: see the metric cast iron taper lock bushes or imperial cast iron taper lock bushes, or the metric steel taper lock bushes or imperial steel taper lock bushes.

Fit the bush in the pulley hub, slide the assembly onto the shaft and align the pulley with its mating pulley. Check the two pulleys are in line with a straight edge before fitting the belt.

Fit the belt by moving the shafts closer together, not by levering it over the flanges or teeth.

Option Part number SKU
18 18-L-100TL A0196371
19 19-L-100TL A0196372
20 20-L-100TL A0196373
21 21-L-100TL A0196374
22 22-L-100TL A0196375
23 23-L-100TL A0196376
24 24-L-100TL A0196377
25 25-L-100TL A0196378
26 26-L-100TL A0196379
27 27-L-100TL A0196380
28 28-L-100TL A0196381
30 30-L-100TL A0196382
32 32-L-100TL A0196383
36 36-L-100TL A0196384
40 40-L-100TL A0196385
44 44-L-100TL A0196386
48 48-L-100TL A0196387
60 60-L-100TL A0196388
72 72-L-100TL A0196389
84 84-L-100TL A0196390
96 96-L-100TL A0196391
120 120-L-100TL A0196392
Product Highlights −

These are L100 taper lock timing pulleys for L section imperial timing belts. L belts have a pitch of 3/8" (9.525mm), and the 100 in the L100 code is the belt width, 1". The range covers 22 models from 18 to 120 teeth.

Each pulley has a tapered bore that takes a taper lock bush. The bush is machined to your shaft size and keyway, and it clamps the pulley to the shaft when its screws are tightened. The pulleys are made in steel for 18 to 60 teeth and grey cast iron for 72 to 120 teeth.
