Maxigear Lathe Dead Centre Alloy Steel, LDC0MT-6MT, 70
Available

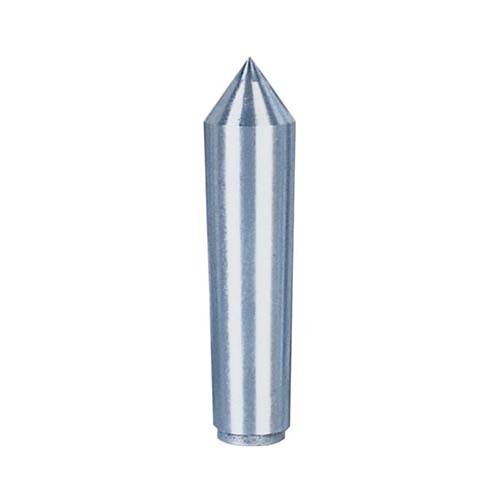

Maxigear alloy steel lathe dead centres are available with a 60° point, from LDC0MT (0MT, 70mm long) to LDC6MT (6MT, 270mm long).
It is a 60° point solid lathe centre, precision ground and hardened, with design features to ISO298 / DIN806 standards. Each part number has its own Morse taper, length and body diameter.
Where this product is used
- Solid lathe centre with a 60° point
Features
- Design features to ISO298 / DIN806 standards
- Precision ground and hardened
- Alloy steel, 60° point
- Morse taper, length and body diameter for each part number
Key specifications
| Specification | Detail |
|---|---|
| Brand | Maxigear |
| Type | Lathe dead centre, alloy steel, 60° point |
| Morse tapers | 0MT to 6MT |
| Part numbers | LDC0MT to LDC6MT |
| Length | 70mm to 270mm |
| Body diameter | 9.2mm to 63.8mm |
| Standards | Design features to ISO298 / DIN806 standards |
Choosing the right option
Match the Morse taper to your machine: LDC0MT is 0MT, 70mm long, and LDC6MT is 6MT, 270mm long, with length and body diameter rising with the taper. Carbide tipped versions start at 1MT: see the carbide tipped lathe dead centre. For a half centre see the carbide tipped lathe half centre.
Carbide tipped version: carbide tipped lathe dead centre.
Half centre: carbide tipped lathe half centre.
Live centres: dual bearing lathe live centre.
| Option | Part number | SKU |
|---|---|---|
| 70 | LDC0MT | A0143886 |
| 80 | LDC1MT | A0143887 |
| 100 | LDC2MT | A0143888 |
| 125 | LDC3MT | A0143889 |
| 160 | LDC4MT | A0143890 |
| 200 | LDC5MT | A0143891 |
| 270 | LDC6MT | A0143892 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Lathe Dead Centre Alloy Steel 60° Point: 70
SKU: A0143886 | Model: LDC0MT
Maxigear LDC0MT: alloy steel 60° point lathe dead centre, Morse taper 0MT, 70mm long, 9.2mm body diameter.
