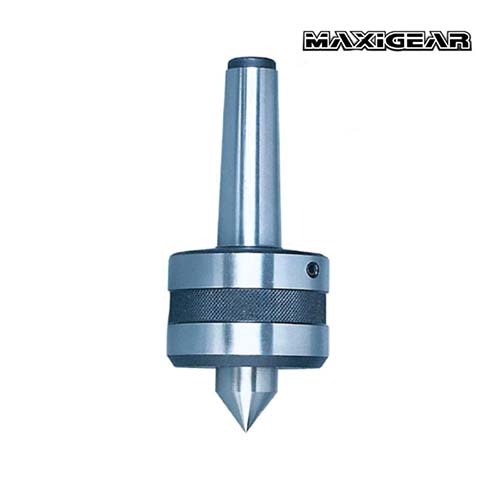

Maxigear Dual Bearing Lathe Live Centre, LLC1MTHD-LLC6MTHD

Maxigear dual bearing lathe live centres are available with a hardened point, from LLC1MTHD (1MTHD, 120mm long) to LLC6MTHD (6MTHD, 355mm long).

It is made of hardened and ground high carbon steel with the point hardened to 52-58 HRC, and has two anti-friction bearings, a single row deep groove ball bearing and a taper roller bearing, to absorb combined radial and thrust loads. It has run out within 0.005mm (0.0002") and a speed capacity up to 2000rpm.

Where this product is used

• Applications up to 2000rpm

Features

• Hardened and ground high carbon steel
• Point hardened to 52-58 HRC
• Two anti-friction bearings: single row deep groove ball bearing and taper roller bearing
• Run out within 0.005mm (0.0002")

Key specifications

Choosing the right option

Match the Morse taper to your machine: LLC1MTHD is 1MTHD and 120mm long, and LLC6MTHD as 6MTHD and 355mm long, with length rising with the taper. For a triple bearing design see the triple bearing lathe live centre, for a set with seven interchangeable tips the lathe live centre set, and for pipe and hollow work the pipe live centre.

Other live centres: triple bearing lathe live centre, lathe live centre set, pipe live centre.
