Maxigear Triple Bearing Lathe Live Centre, LLC2-4MTHDPREC
Available

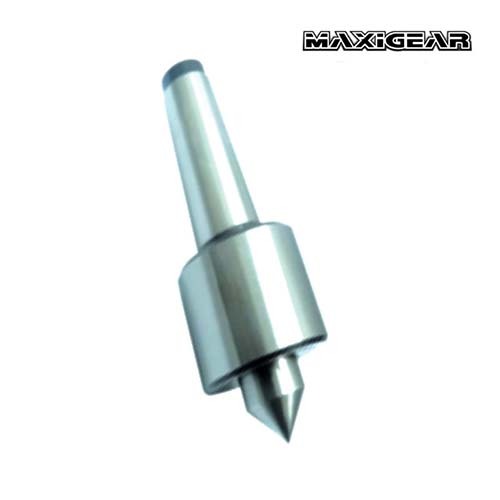

Maxigear triple bearing lathe live centres are available with a hardened point, in three part numbers: LLC2MTHDPREC (2MT), LLC3MTHDPREC (3MT) and LLC4MTHDPREC (4MT).
It has a high precision triple bearing design, manufactured of hardened and ground alloy steel. Each part number has its own Morse taper, point diameter and length.
Where this product is used
- High precision triple bearing live centre
Features
- Triple bearing design
- Manufactured of hardened and ground alloy steel
- Morse taper, point diameter and length for each part number
- Type: Triple bearing lathe live centre, hardened point
Key specifications
| Specification | Detail |
|---|---|
| Brand | Maxigear |
| Type | Triple bearing lathe live centre, hardened point |
| Morse tapers | 2MT, 3MT and 4MT |
| Part numbers | LLC2MTHDPREC to LLC4MTHDPREC |
| Point diameter | 15mm and 20mm |
| Length | 140mm to 180mm |
| Material | Hardened and ground alloy steel |
Choosing the right option
Match the Morse taper to your machine: LLC2MTHDPREC is 2MT and LLC3MTHDPREC is 3MT, both with a 15mm point diameter and lengths of 140mm and 155mm, while LLC4MTHDPREC is 4MT with a 20mm point diameter and 180mm length. For dual bearing centres see the dual bearing lathe live centre.
Other live centres: dual bearing lathe live centre, lathe live centre set, pipe live centre.
| Option | Part number | SKU |
|---|---|---|
| 140 | LLC2MTHDPREC | A0145212 |
| 155 | LLC3MTHDPREC | A0145213 |
| 180 | LLC4MTHDPREC | A0145214 |
