Maxigear Pipe Live Centre, LLCP2MT063-LLCP5MT147, 243
Available

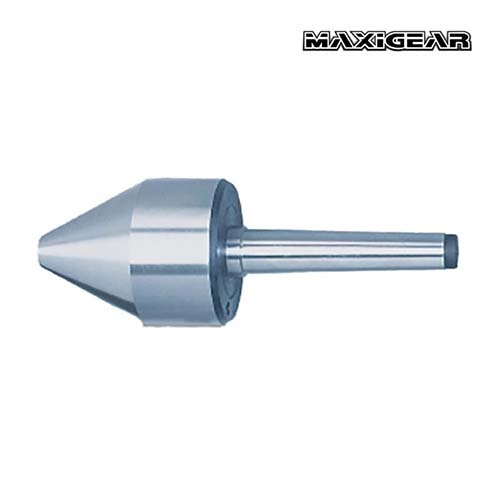

Maxigear pipe live centres are available in four sizes, from LLCP2MT063 (2MT, 63mm head diameter) to LLCP5MT147 (5MT, 147mm head diameter).
It is a centre designed to hold pipe and hollow work, with preloaded bearings for good thrust and radial load capacities and a head made from heat treated hardened high carbon alloy steel, hardened to 55-60 HRC.
Where this product is used
- Holding pipe and hollow work
Features
- Preloaded bearings for good thrust and radial load capacities
- Head made from heat treated hardened high carbon alloy steel
- Head hardened to 55-60 HRC
- Morse taper, head diameter, total length and bevel angle for each part number
Key specifications
| Specification | Detail |
|---|---|
| Brand | Maxigear |
| Type | Pipe live centre |
| Morse tapers | 2MT to 5MT |
| Part numbers | LLCP2MT063 to LLCP5MT147 |
| Head diameter | 63mm to 147mm |
| Total length | 136mm to 243mm |
| Angle of bevel | 70° and 75° |
| Head hardness | 55-60 HRC |
Choosing the right option
Match the Morse taper to your machine and the head diameter to the pipe: LLCP2MT063 is 2MT with a 63mm head and LLCP5MT147 is 5MT with a 147mm head. The 2MT and 3MT sizes have a 70° bevel and the 4MT and 5MT sizes a 75° bevel. For single centres see the dual bearing lathe live centre.
Other live centres: dual bearing lathe live centre, triple bearing lathe live centre, lathe live centre set.
| Option | Part number | SKU |
|---|---|---|
| 136 | LLCP2MT063 | A0145215 |
| 172 | LLCP3MT078 | A0145216 |
| 193 | LLCP4MT128 | A0145217 |
| 243 | LLCP5MT147 | A0145218 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
136
Model Number: LLCP2MT063
-
172
Model Number: LLCP3MT078
-
193
Model Number: LLCP4MT128
-
243
Model Number: LLCP5MT147
