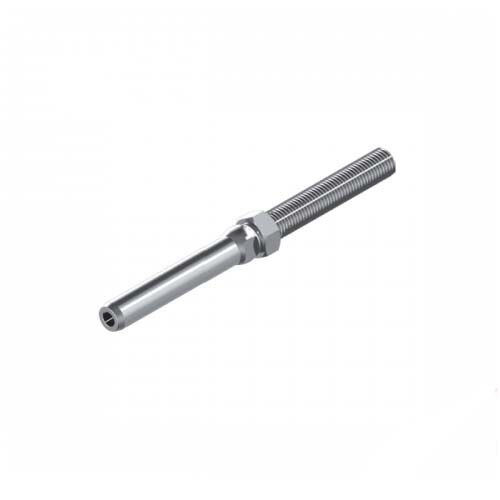

M5 (3.2 mm) Swage Stud Terminal, 316 Stainless Steel - STEA4M5X32L
Available
Made in 316 (A4) stainless steel, the Left Hand Thread Swage Stud Terminal is a stainless swage terminal with a threaded stud. The swage end is pressed onto wire rope, and the stud takes a nut or a turnbuckle.
This listing has 3 variants covering sizes M5 (3.2 mm) to M6 (4 mm). Pack quantities depend on size: packs of 5 to 10.
Made from 316 (A4) stainless steel, the grade normally specified for chloride-exposed work such as coastal installations, swimming pools, marine fittings and food-processing plant. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.
Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.
Where this product is used
- Shade sails, awnings and tensioned structures
- Coastal and architectural fittings
- Chemical and washdown areas
- Balustrade and wire fencing
- Swimming pool and spa equipment
Features
- Range covers M5 (3.2 mm) to M6 (4 mm) in 3 variants
- A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
- Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
- Swaged onto wire rope
- Threaded stud, right hand or left hand
- Supplied in packs of 5 to 10

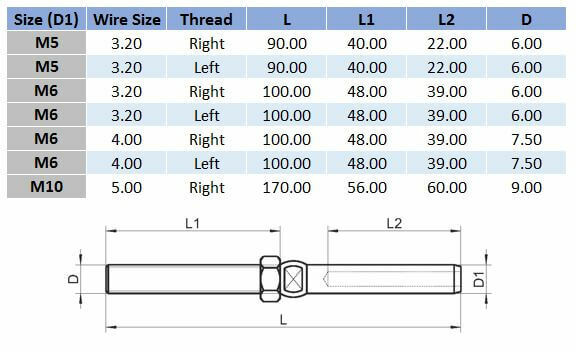

Key specifications
| Specification | Detail |
|---|---|
| Product | Left Hand Thread Swage Stud Terminal |
| Type | Stainless swage terminal with a threaded stud |
| Key features | Swaged onto wire rope; Threaded stud, right hand or left hand |
| Material | A4 (316) stainless steel |
| Supplied in packs of | 5 to 10, by size |
| Number of variants | 3 |
| Sizes available | M5 (3.2 mm) to M6 (4 mm) |
| Thread system | Metric |
| Fitting tip | Use anti-seize on the thread to reduce galling |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Thread hand | Left Hand |
| Suited to | Coastal, marine, pool and food-processing use |
Selecting the right option
Check the thread hand shown in the product name. Right hand and left hand terminals are used as a pair with a turnbuckle or rigging screw. Choose the terminal by the wire rope diameter shown on the variant.
Important
This product is not stated as lifting rated in the supplier data. Do not use it to lift or suspend people or loads unless it is marked with a working load limit (WLL). Rigging and lifting hardware should be selected, inspected and used in line with your site procedures and the relevant Australian Standards, and a qualified rigger should be consulted for any lift.
Related products
Other versions in this range: Right Hand Thread Swage Stud Terminal - 316 Stainless Steel.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
M5 (3.2 mm)
Model Number: STEA4M5X32L
-
M6 (3.2 mm)
Model Number: STEA4M6X32L
-
M6 (4 mm)
Model Number: STEA4M6X4L
