FYH Round flange cartridge housing

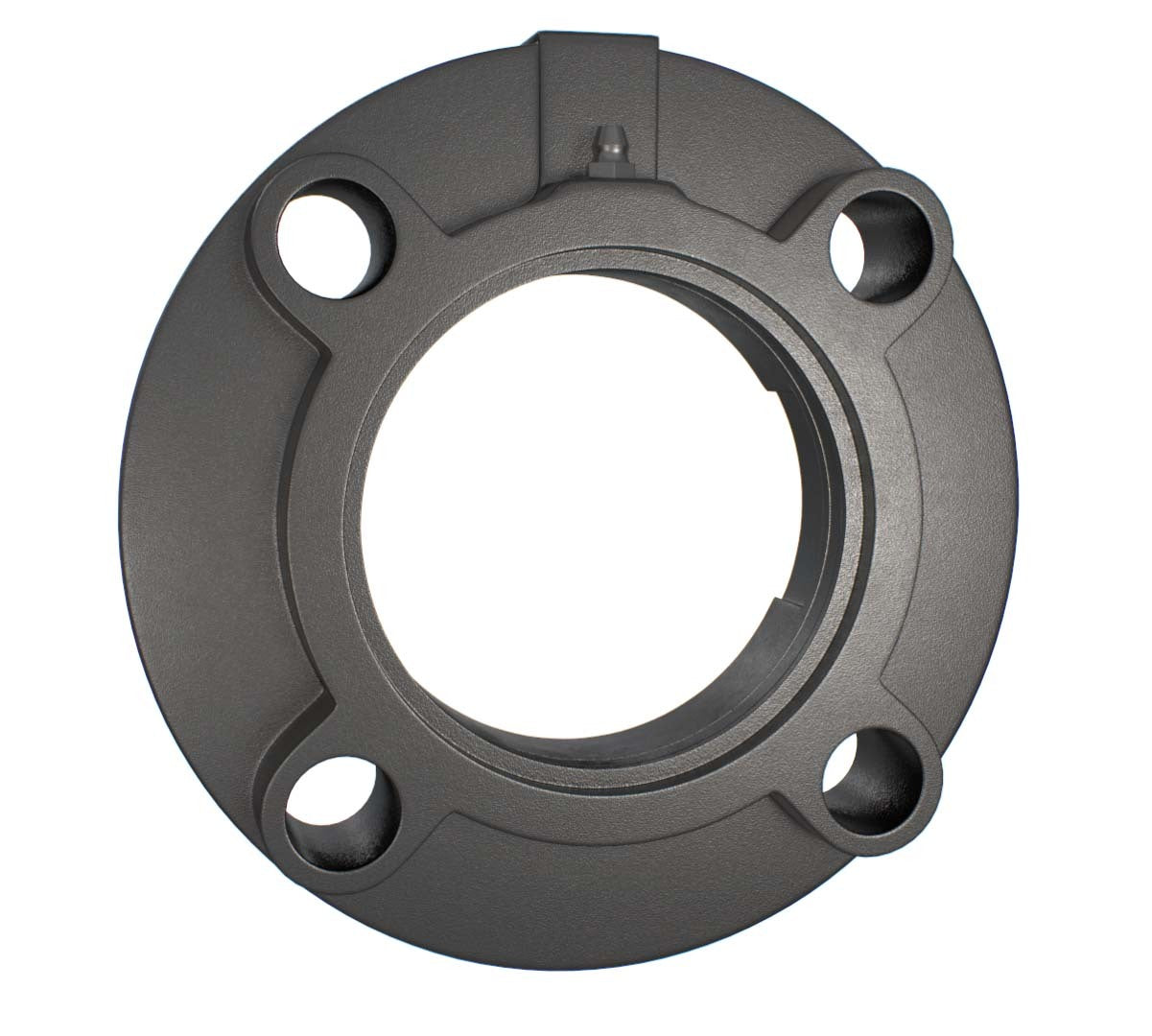

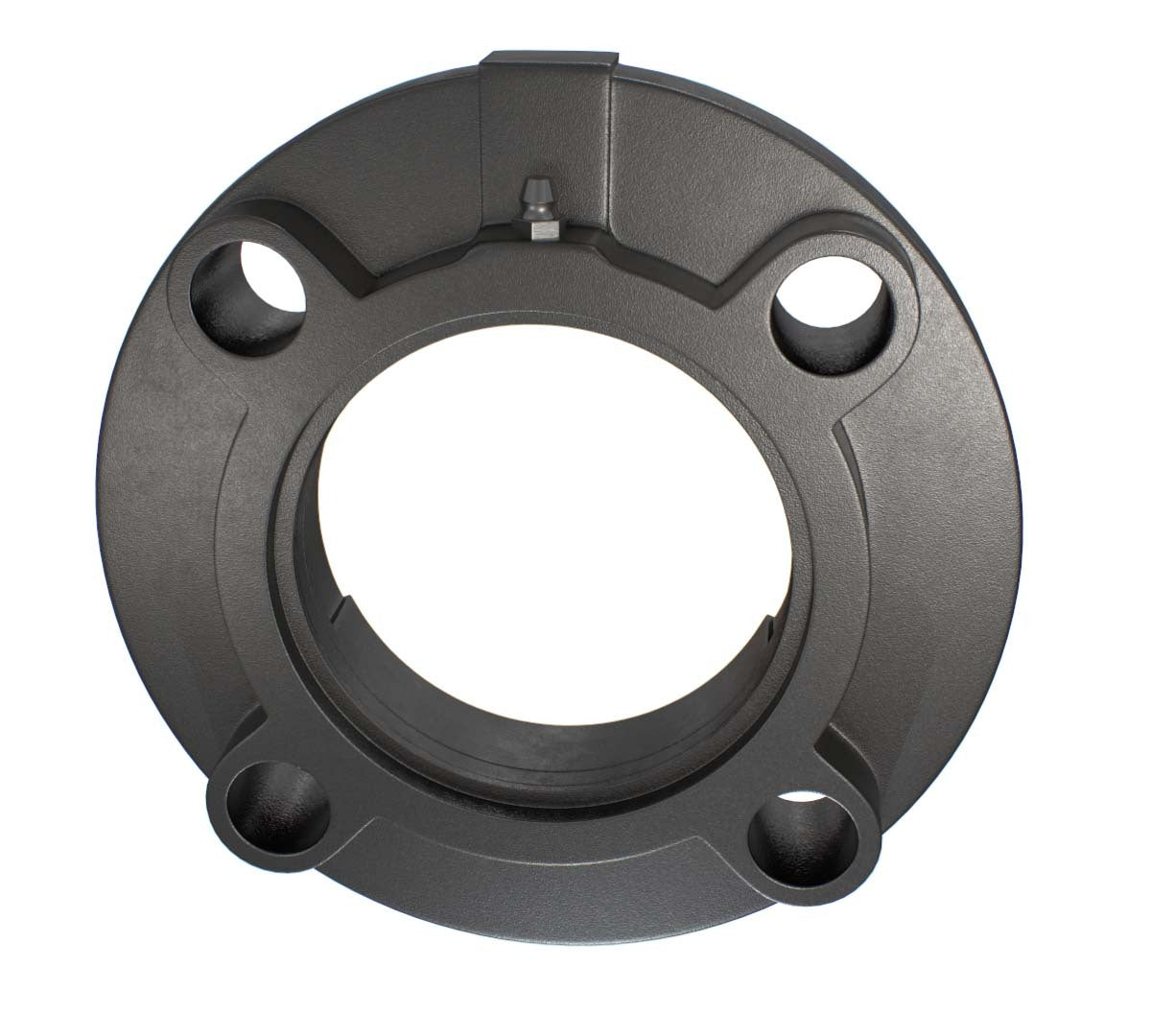

FYH FC200 is a cast iron round flange cartridge bearing housing in the normal duty range. Select the housing from the drop-down; each size has its own dimension set in the Model Details. These round flange cartridge housings are supplied without an insert bearing. A complete unit such as UCFC211 is the FC211 housing fitted with a UC211 insert bearing, which is ordered separately (see Related products).

Where this product is used

• Housings needing a located pilot bore
• Conveyors and drives
• Fans and pumps
• General industrial machinery

Features

• Cast iron housing, 200 series (diameter series code 2, normal duty)
• Insert bearings for these housings: UC (set screw) in all sizes, NC (concentric collar) in 9 of 15 sizes, UK (tapered bore, adapter sleeve) in 13 of 15 sizes, SB (set screw, lightweight) in 5 of 15 sizes, SA (eccentric collar, lightweight) in 8 of 15 sizes
• Housing numbers: FC204 to FC218 (15 sizes)
• Shaft diameter, metric: 12 to 90mm

Key specifications

Fitting and use

The housing is supplied without an insert bearing. Order the insert separately and lock it to the shaft in the way its own type requires: a UC insert locks to the shaft with two set screws; an NC insert locks with a concentric collar; a UK insert is a tapered bore insert that mounts on the shaft with an adapter sleeve; an SB insert locks to the shaft with set screws; an SA insert locks with an eccentric collar.

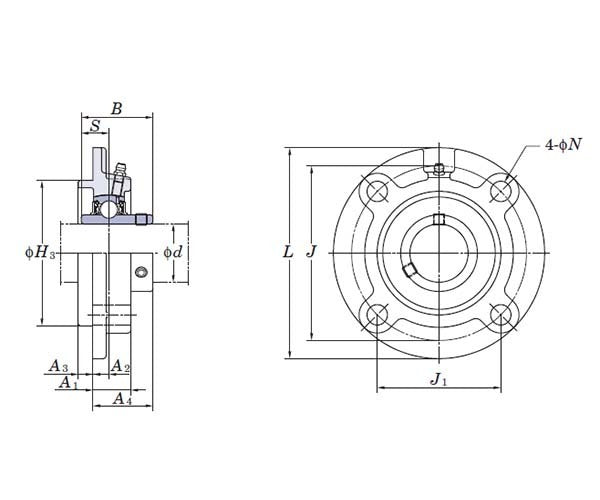

The pilot (spigot) on the back of the housing locates in a bore in your frame. Check the pilot diameter H3 in the Model Details against that bore, and set out the four bolt holes on the bolt circle diameter J (J1 is the spacing between adjacent holes).

Choosing the right option

Match the housing to the insert bearing and the shaft. For example FC211 takes UC211 on a 55mm shaft.

Choose the metric size for a metric shaft; for an inch shaft pick the same housing and order the insert with the matching dash number (for example UC211-32).

The Bolt Size option is the mounting bolt for the housing unit tables (inch equivalent in the Model Details).

Not sure which insert or housing suits your shaft?

See also: UC200 metric set screw insert bearings, UC200 inch set screw insert bearings, UK200 tapered bore insert bearings, FCX round flange cartridge housings.
