INOX 316 linch pins, M4
The price shown is for the pack.
Available

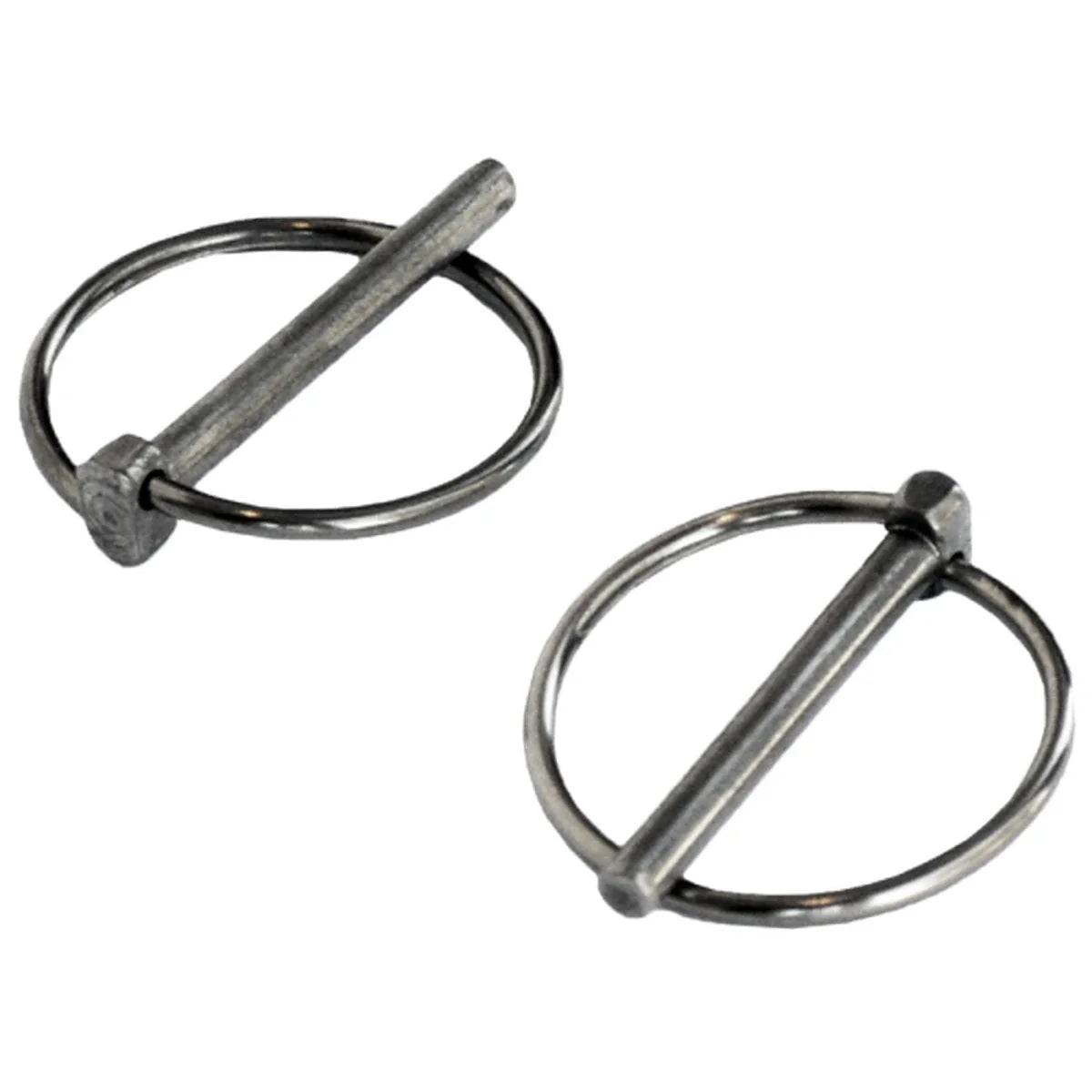

INOX Linch Pin Stainless Steel is a linch pin. Made in 316 (A4) stainless steel, the Linch Pin is a pin with a pivoting lock ring (or a retaining collar) used to secure a wheel, hitch or coupling on a shaft.
Made from 316 (A4) stainless steel, the grade normally specified for chloride-exposed work such as coastal installations, swimming pools, marine fittings and food-processing plant. You can choose from 4 variants, covering sizes M4 to M10. Pack quantities depend on size: packs of 10 to 20. In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.
Where this product is used
- Marine and agricultural fittings
- Trailer, tractor and equipment hitches
- Securing wheels and hubs on shafts
- Swimming pool and spa equipment
- Chemical and washdown areas
Features
- A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
- Positive retention of the pin
- Range covers M4 to M10 in 4 variants
- Pack quantities to suit trade and bulk buying: packs of 10 to 20
- Locks quickly and is quick to remove
Key specifications
| Specification | Detail |
|---|---|
| Brand | INOX |
| Product | Linch Pin |
| Type | Pin with a pivoting lock ring (or a retaining collar) used to secure a wheel, hitch or coupling on a shaft |
| Material | A4 (316) stainless steel |
| Pack size | 10 to 20, by size |
| Sizes available | M4 to M10 |
| Variants | 4 |
| Suited to | Coastal, marine, pool and food-processing use |
| Key features | Locks quickly and is quick to remove, Positive retention of the pin |
Choosing the right option
Check the pin diameter against the shaft or hitch hole. For indoor and general outdoor use where chlorides are not a concern, the A2 (304) version is the lower-cost option: Linch Pin - 304 Stainless Steel.
| Option | Part number | SKU |
|---|---|---|
| M4 | A0212808 | |
| M6 | A0212809 | |
| M8 | A0212810 | |
| M10 | A0212807 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Linch Pin Stainless Steel: M4
SKU: A0212808 | Model: LPIA4M4
INOX A0212808 is a 316 linch pins, M4. Model code: LPIA4M4. Material: 316 Stainless Steel.
