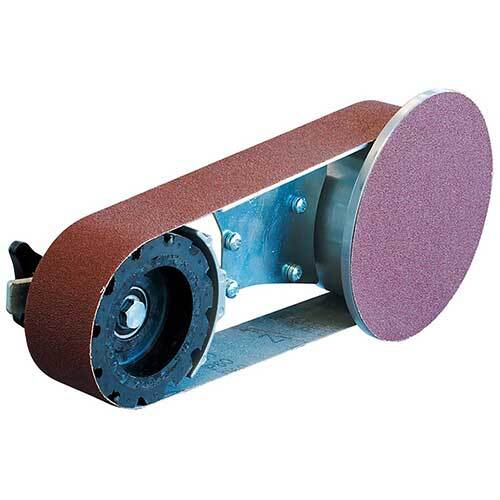

Linishall 915 Belt Grinding Attachment 750 W (1 HP)

The Linishall 915 belt grinding attachment takes a 915 x 50 mm (36 x 2 inch) abrasive belt and a 178 mm (7 inch) disc. It attaches to an electric motor (preferred) or to some bench grinders, and Linishall lists it as fitting easily to most 200 mm (8 inch) bench grinders.

It has rugged cast metal construction, simple assembly and adjustment, and a rubber contact wheel with air grooves for cooling that gives longer wheel life. Belt tracking needs no tools. It is supplied with full installation instructions.

Where this product is used

• Adding belt grinding and disc sanding to an electric motor or a suitable bench grinder.
• Linishing, deburring and finishing metal with 915 x 50 mm belts.

Features

• 915 x 50 mm (36 x 2 inch) belt and 178 mm (7 inch) disc
• Fits easily to most 200 mm (8 inch) bench grinders
• Attaches to an electric motor (preferred) or some bench grinders
• Rugged cast metal construction
• Simple assembly and adjustment
• Rubber contact wheel with air grooves for longer wheel life
• Easy belt tracking with no tools required
• Supplied with full installation instructions

Key specifications

Selecting the right option

Performance depends on the motor the attachment is fitted to, and Linishall recommends a minimum of 750 W (1 HP). Confirm that it suits your grinder or motor before ordering. Contact AIMS if you are unsure which Linishall machine or accessory suits your job.

Related products

The Linishall 915 pivoting table is designed to fit this attachment. For a 200 mm grinder supplied with the attachment fitted see the Linishall BG8/915 bench grinder with linishing attachment, and for belts see the Linishall linishing belts.
