Linishall BG8 - 200mm (8") 750W Heavy Duty Bench Grinder
Available

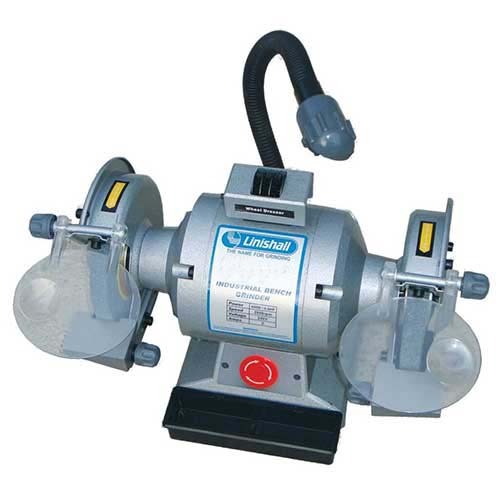

The Linishall BG8 is a 200mm (8") heavy duty bench grinder with a 750W (1 HP) motor running at 2850rpm. It is the first choice for applications where reliability, long life and usability are important.
It has adjustable oval eyeshields with a magnifying glass, a safety E-stop switch, an adjustable LED work light, a diamond wheel dresser, cast metal tool rests and pre-loaded bearings with no end play. The guards are wider so they accept 25mm (1") wide wire wheels.
Where this product is used
- Sharpening and dressing chisels, drill bits, punches and lathe tools
- Deburring, chamfering and edge preparation of metal components
- Wire wheel cleaning and rust removal, using the wider guards that accept 25mm wide wire wheels
Features
- 200mm (8") wheel, 750W (1 HP) motor, 2850rpm
- Safety E-stop emergency switch
- Adjustable oval eyeshields with magnifying glass
- Adjustable LED work light
- Diamond wheel dresser
- Cast metal tool rests
- Pre-loaded bearings with no end play
- Heavy sheetmetal wheel guards, wider to accept 25mm (1") wide wire wheels
Key specifications
| Specification | Detail |
|---|---|
| Brand | Linishall |
| Model | BG8 |
| Wheel size | 200 x 25 x 16mm (diameter x width x bore) |
| Motor | 750W (1 HP) |
| Speed | 2850rpm |
| Shaft | 16mm (5/8") |
| Thread | M16 x 2.0 |
| Standard wheel grit | 36 and 60 |
Choosing the right option
Choose the grinder by wheel size and motor: the BG8 has a 200mm (8") wheel and a 750W motor.
See the: Linishall BG8/915 bench grinder with linishing attachment, Linishall BGSHEET bench grinder stand, Linishall grinding wheels.
