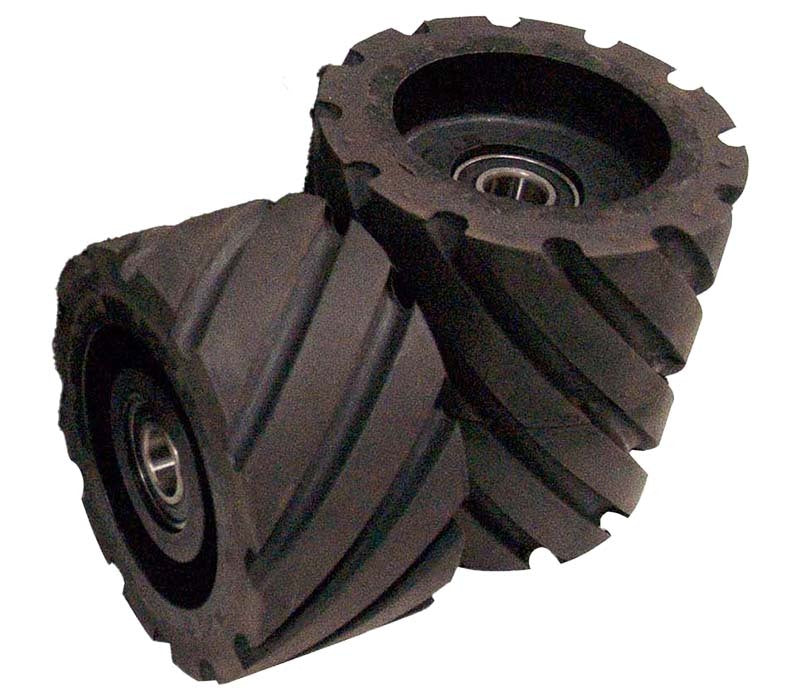

Linishall rubber contact wheel, 100 x 50mm (4 x 2")
Available
The Linishall rubber contact wheel is grooved to create air flow for a natural cooling effect, and crowned to help belt tracking. The size range fits most linishing machines or custom applications. It can be attached to a motor or a suitably powered grinder and used with a backstand idler.
This product is the wheel only, without the spindle, and is sold as one piece. The image is for illustration only. The wheel with spindle is sold as the Linishall rubber contact wheel assembly.
Where this product is used
- Replacing the contact wheel on a Linishall belt grinder or attachment
- Custom belt grinding set-ups, fitted to a motor or suitably powered grinder with a backstand idler
Features
- Grooved to create air flow for a natural cooling effect
- Crowned to help belt tracking
- Rubber construction
- 100 x 50mm (4 x 2") and 100 x 100mm (4 x 4") sizes
- Sold as one piece, wheel only (without spindle)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Linishall |
| Wheel size (diameter x width) | 100 x 50mm (4 x 2"), 100 x 100mm (4 x 4") |
| Suits | 1220/50, 1520/50 and 915, 1520/100 |
Choosing the right option
Choose the wheel by the belt size of your machine: the RCW420 (100 x 50mm) suits 1220/50, 1520/50 and 915 machines, and the RCW440 (100 x 100mm) suits 1520/100. If you need the wheel with its spindle, see the Linishall rubber contact wheel assemblies.
The wheel with a spindle is the: Linishall rubber contact wheel assemblies.
Machines include the: Linishall belt grinding attachment, Linishall bench mounted belt grinder, Linishall pedestal mounted belt grinder.
| Option | Part number | SKU |
|---|---|---|
| 100 x 50mm (4 x 2") | RCW420 | A0178105 |
| 100 x 100mm (4 x 4") | RCW440 | A0178106 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Linishall Rubber Contact Wheel: 100 x 50mm (4 x 2")
SKU: A0178105 | Model: RCW420
Wheel Size (Diameter x Width) 100 x 50mm (4 x 2"). One piece only. Image is for illustration purposes only. Grooved to create air flow for natural cooling effect. Crowned to assist belt tracking. Large size range to fit most Linishing machines or custom applications. Can be attached to a motor, or suitably powered grinder, and used in conjunction with a Backstand Idler. Rubber Contact Wheel Assembly is also available.
