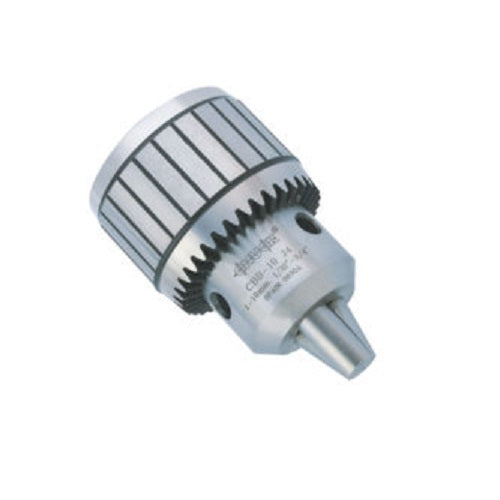

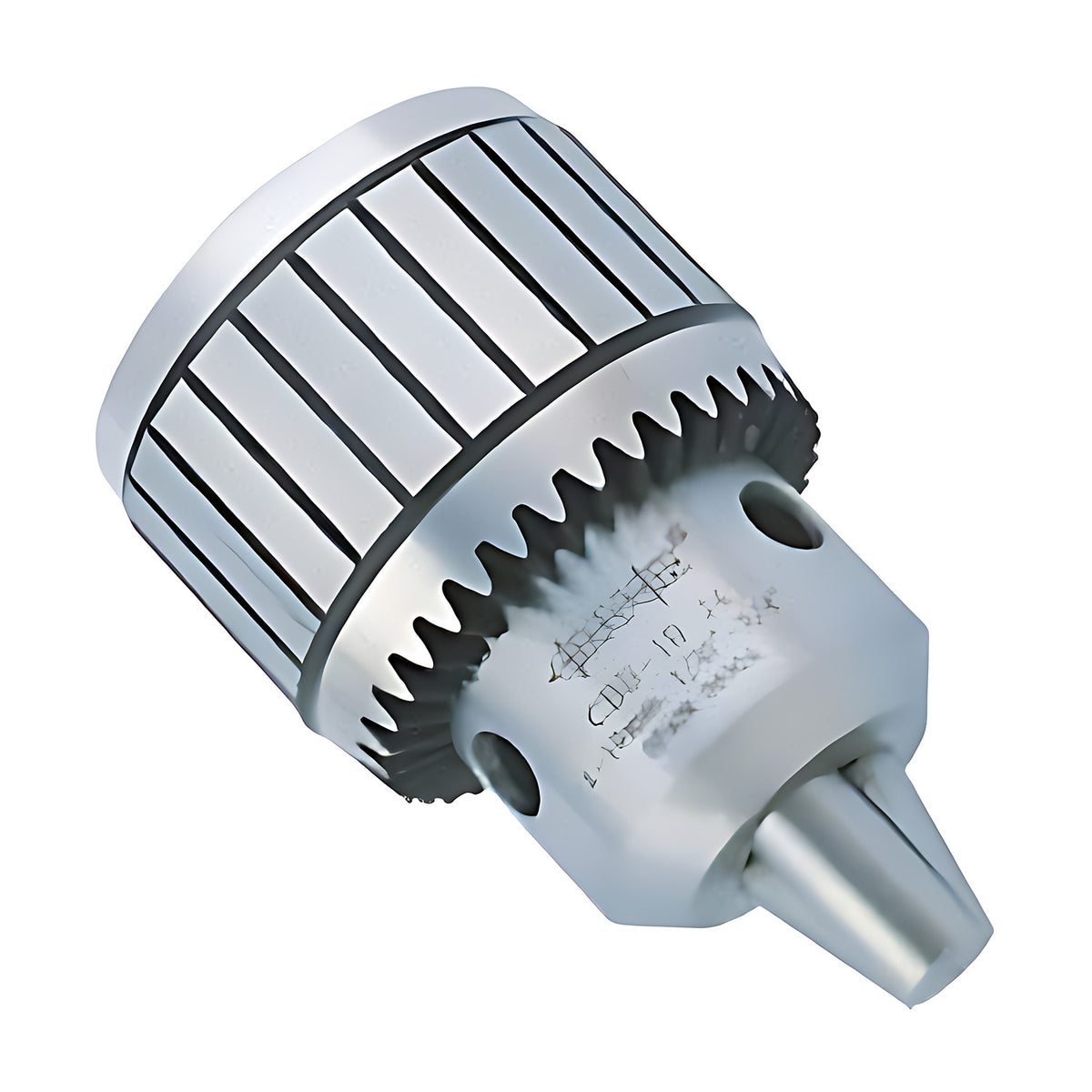

Llambrich CBB-16-J3 1-16mm Ball Bearing Keyed Drill Chuck, J-3 Mount

Llambrich CBB chucks are ball bearing keyed drill chucks with capacities up to 25mm. Llambrich describes them as drill chucks with key for production drilling equipment, with ball bearings in the tightening mechanism to reduce friction and help grip the drill shaft (manufacturer-stated).

Machine fitting is through Jacobs tapers, and the range takes tools of up to 25mm (1") (manufacturer-stated). The 13mm chuck has a J-3 or J-6 mount, the 16mm chuck a J-3, the 19mm chuck a J-4 and the 25mm chuck a J-5. Llambrich states that all the pieces are hardened and ground (manufacturer-stated).

Where this product is used

• Production drilling equipment (manufacturer-stated)
• Industrial applications with demanding machining conditions (manufacturer-stated)

Features

• Ball bearings reduce friction in the tightening mechanism (manufacturer-stated)
• All pieces hardened and ground (manufacturer-stated)
• One-piece gear ring and sleeve, which Llambrich says eliminates the possibility of tooth breakage (manufacturer-stated)
• Machine fitting via Jacobs tapers (manufacturer-stated)
• Takes tools of up to 25mm (1") across the range (manufacturer-stated)
• Manufactured in Spain (manufacturer-stated)

Common specifications

Key specifications

Capacity, mount, key type and sizes O, L1 and L2 in mm for each chuck (manufacturer-stated).

Selecting the right option

Choose the capacity for the largest drill you need to hold, then match the mount to your arbor or spindle: the CBB-13 has a J-3 or J-6 mount, the CBB-16 a J-3, the CBB-19 a J-4 and the CBB-25 a J-5. Llambrich lists key LS3 for the CBB-13, LK4S13 for the CBB-16 and CBB-19, and LK5 for the CBB-25 (manufacturer-stated): see Chuck Key - Metric for LS3 and Chuck Key - Imperial for LK4S13 and LK5.
