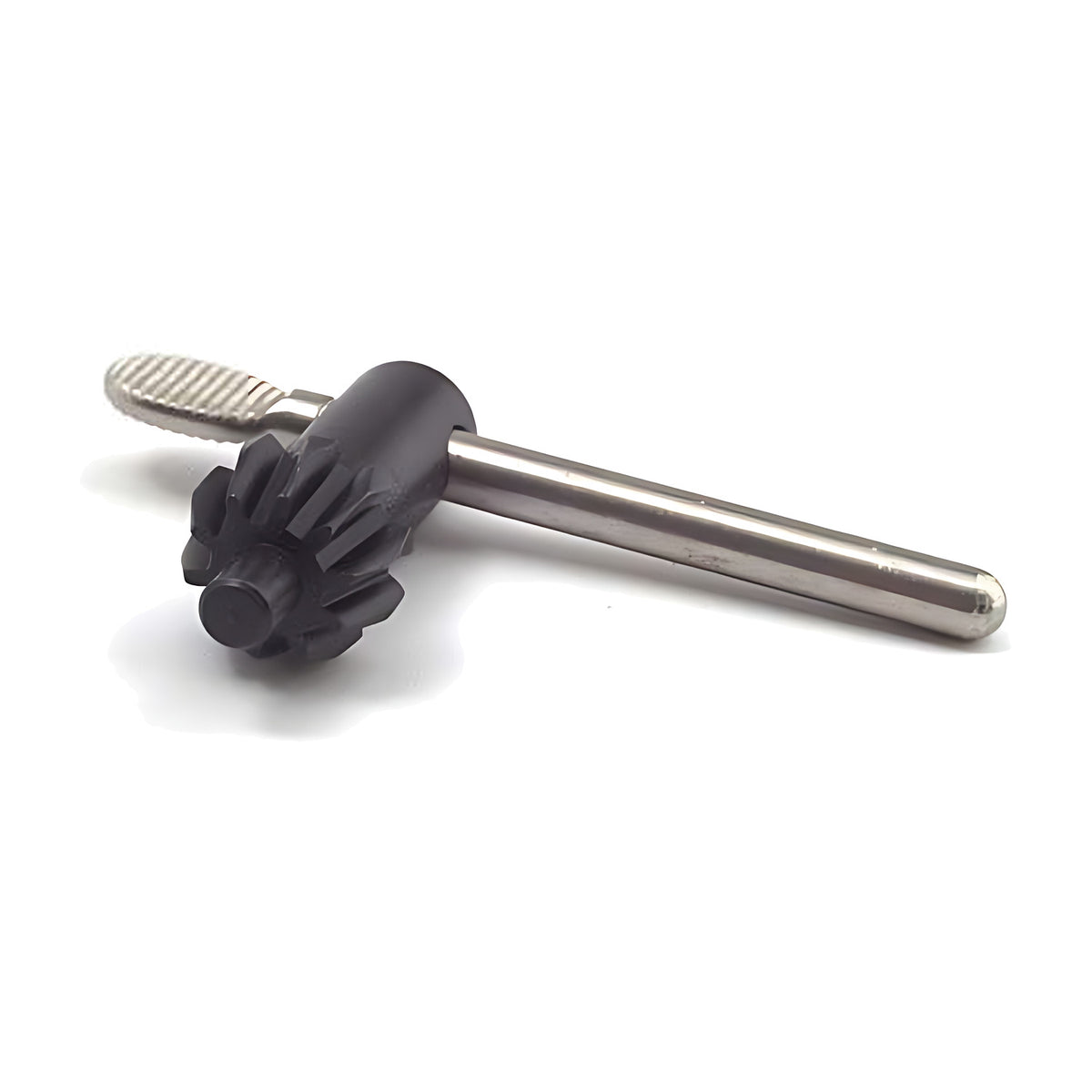

Llambrich LS2 Chuck Key, 6mm Pilot, 12 Teeth
Available
Llambrich metric chuck keys LS1, LS2 and LS3, with pilot sizes of 4mm, 6mm and 8mm and 10 or 12 teeth (manufacturer-stated).
LS1 has a 4mm pilot and 10 teeth, LS2 a 6mm pilot and 12 teeth, and LS3 an 8mm pilot and 12 teeth (manufacturer-stated). Each key's Suits entry names the chuck models and series it fits, including Llambrich CL-13 and CY-10 for the LS2.
Where this product is used
- Opening and closing a keyed drill chuck that takes a 4mm, 6mm or 8mm pilot
Features
- Pilot sizes of 4mm, 6mm and 8mm, by part number (manufacturer-stated)
- 10 teeth (LS1) or 12 teeth (LS2, LS3) (manufacturer-stated)
- The Suits entry names the chuck models and series each key fits
Common specifications
| Specification | Detail |
|---|---|
| Pilot size | 4mm, 6mm and 8mm (manufacturer-stated) |
| Teeth | 10 or 12 (manufacturer-stated) |
| Part numbers | LS1, LS2 and LS3 |
Key specifications
| Part number | Pilot size (manufacturer-stated) | Teeth | Suits |
|---|---|---|---|
| LS1 | 4mm | 10 | Rohm Prima Series & LFA 4mm 6mm and 8mm |
| LS2 | 6mm | 12 | CL-13, CY-10 & Rohm PRIMA Series 8, 10, 13mm |
| LS3 | 8mm | 12 | S3 DIN Series |
Pilot size as stated by the manufacturer; no inch size is given for these keys. Suits is the chuck model or series for each key.
Selecting the right option
Start with the Suits column for your chuck, then confirm the pilot size and tooth count against the key you are replacing: LS1 is 4mm and 10 teeth, LS2 is 6mm and 12 teeth, LS3 is 8mm and 12 teeth. For pilot sizes given in inches see the imperial chuck keys.
Related products
Imperial chuck keys, Industrial keyed chucks and Keyed chucks for portable tools.
