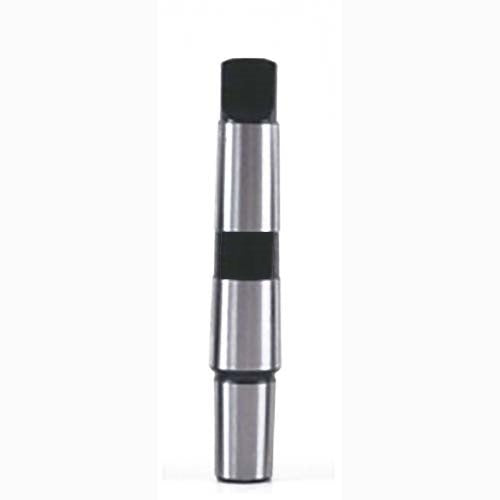

Llambrich Morse 1 to 5 with B10, 88mm

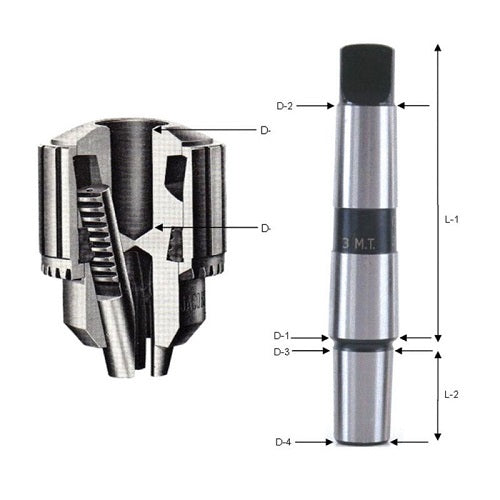

These Llambrich drill chuck arbors have a Morse taper at one end (sizes 1 to 5) and a B-series taper at the other (B10, B12, B16, B18 or B22). The part number reads MT, the Morse number, then the B-series taper, so MT2B16 is Morse 2 to B16.

Overall length runs from 85mm (MT1B10) to 192mm (MT5B18). The B-series tapers are to DIN (metric) tapers. It has its taper arbors in DIN-238 and Jacobs tapers. The arbor is the intermediary gripping element between the drill chuck (types CKS, SP and SPX) and the spindle of the machine.

Where this product is used

• Custom tool and work holder designs

Features

• Machined and ground
• Its arbors are totally hardened and precision ground
• B-series tapers B10, B12, B16, B18 and B22, to DIN (metric) tapers
• Part number format: MT, Morse taper number, then the B-series taper (MT2B16 is Morse 2 to B16)

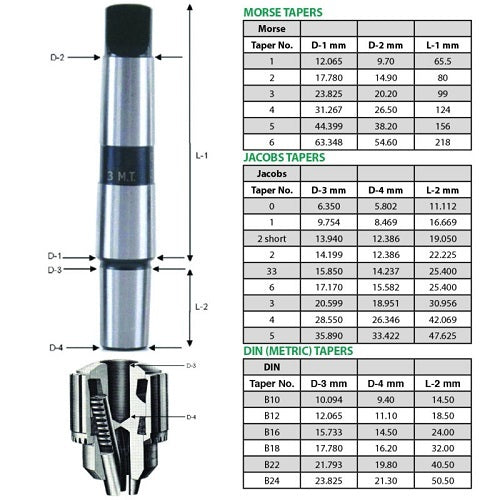

Key specifications

Choosing the right option

Match the Morse taper number to the taper of your machine spindle or sleeve, and the B-series number to the taper in your drill chuck. For the same Morse taper the overall length depends on the B-series taper: MT3B12 is 121mm and MT3B22 is 143mm. For a Jacobs taper in the chuck see the Morse taper to Jacobs taper arbors; for an R8 Bridgeport spindle with a B16 chuck see the R8 to B16 arbor.

See also: Morse taper to Jacobs taper arbors, R8 to B16 arbor, threaded shank arbors.
