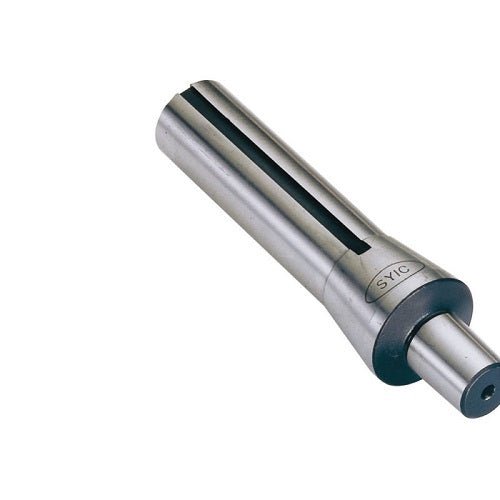

Llambrich Drill Chuck Arbor R8 Bridgeport to B16 DIN Taper

Llambrich R8B16 is a drill chuck arbor with an R8 (R-8) Bridgeport taper at one end and a B16 DIN taper at the other. Overall length is 135mm. The B16 taper is under DIN (metric) tapers, with dimensions D-3 15.733mm, D-4 14.50mm and L-2 24.00mm. The arbor is the intermediary gripping element between the drill chuck (types CKS, SP and SPX) and the spindle of the machine.

Where this product is used

• Custom tool and work holder designs

Features

• Machined and ground
• Its arbors are totally hardened and precision ground
• R8 (R-8) Bridgeport taper to B16 DIN taper, 135mm overall length
• Part number: R8B16

Key specifications

Choosing the right option

Choose this arbor for a Bridgeport R8 spindle with a drill chuck that has a B16 taper. For a Jacobs taper in the chuck see the R8 Bridgeport to Jacobs taper arbors; for a Morse taper spindle with a B-series chuck see the Morse taper to DIN taper arbors.

See also: R8 Bridgeport to Jacobs taper arbors, Morse taper to DIN taper arbors, Morse taper to Jacobs taper arbors.
