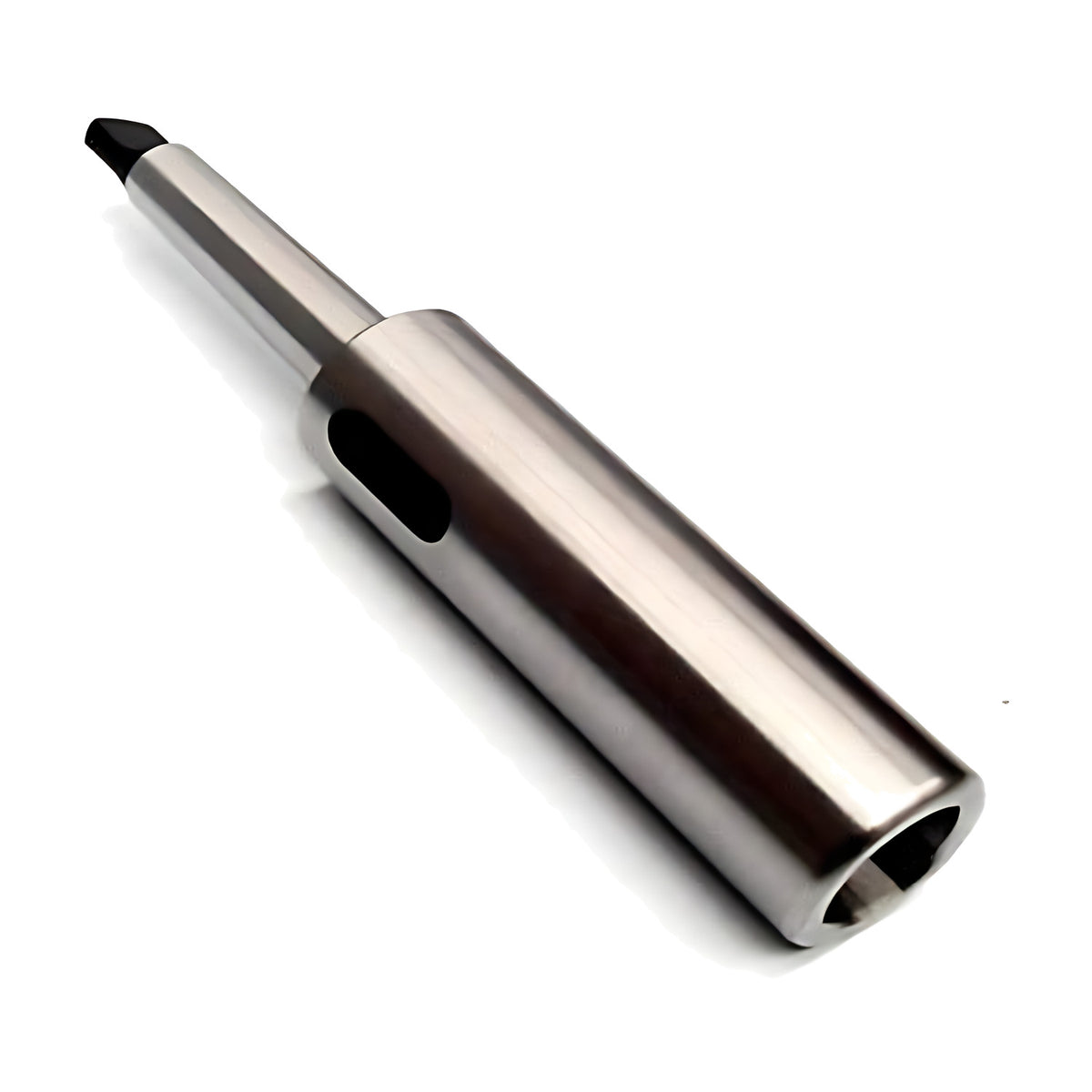

Llambrich XMT1MT1 Extension Socket, Morse Taper 1 Outside, 1 Inside, 145mm
Available
Llambrich XMT extension sockets in Morse taper sizes: outside taper 1 to 5 and inside taper 1 to 5, listed from XMT1MT1 to XMT5MT5.
The tang is hardened and the socket is accurately ground externally (manufacturer-stated). Llambrich lists the range under DIN 2187 (manufacturer-stated). Overall length runs from 145mm (XMT1MT1) to 335mm (XMT5MT5).
Where this product is used
- Extending the reach of a Morse taper tool
Features
- Hardened tang, accurately ground externally (manufacturer-stated)
- Listed by Llambrich under DIN 2187 (manufacturer-stated)
- Outside Morse taper 1 to 5 and inside Morse taper 1 to 5, matched by part number
Common specifications
| Specification | Detail |
|---|---|
| Standard | DIN 2187 (manufacturer-stated) |
| Construction | Hardened tang, accurately ground externally (manufacturer-stated) |
| Outside Morse taper | 1 to 5 |
| Inside Morse taper | 1 to 5 |
| Overall length | 145 to 335mm |
Key specifications
| Part number | Outside Morse taper | Inside Morse taper | Overall length |
|---|---|---|---|
| XMT1MT1 | 1 | 1 | 145mm |
| XMT1MT2 | 1 | 2 | 160mm |

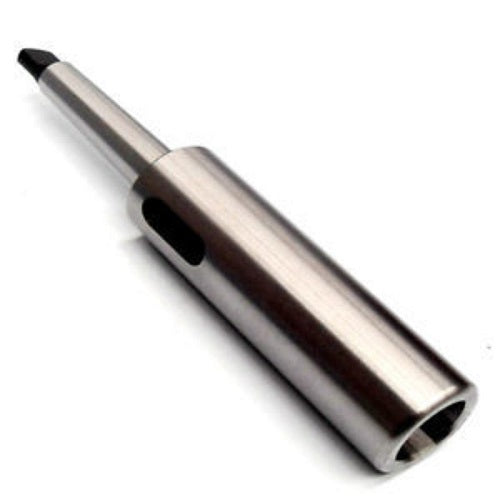

| XMT2MT1 | 2 | 1 | 160mm |
| XMT2MT2 | 2 | 2 | 175mm |
| XMT2MT3 | 2 | 3 | 196mm |
| XMT3MT1 | 3 | 1 | 175mm |
| XMT3MT2 | 3 | 2 | 194mm |
| XMT3MT3 | 3 | 3 | 215mm |
| XMT3MT4 | 3 | 4 | 240mm |
| XMT4MT1 | 4 | 1 | 200mm |
| XMT4MT2 | 4 | 2 | 215mm |
| XMT4MT3 | 4 | 3 | 240mm |
| XMT4MT4 | 4 | 4 | 265mm |
| XMT4MT5 | 4 | 5 | 300mm |
| XMT5MT1 | 5 | 1 | 232mm |
| XMT5MT2 | 5 | 2 | 247mm |
| XMT5MT3 | 5 | 3 | 268mm |
| XMT5MT4 | 5 | 4 | 300mm |
| XMT5MT5 | 5 | 5 | 335mm |
Outside and inside Morse taper for each part number (manufacturer-stated).
Selecting the right option
Match the inside taper to the tool shank you want to hold and the outside taper to the spindle or sleeve it goes into. The part number carries both: XMT3MT2 is outside 3, inside 2. Overall length is in the table for each part number. To step a Morse taper down to a smaller one see the Morse taper drill sleeves.
