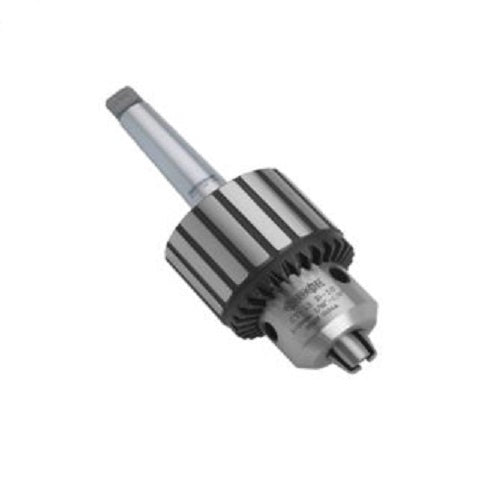

Llambrich CY-13-2MT Keyed Drill Chuck with 2 Morse Taper Arbor, 1-13mm
Out of stock
Llambrich lists the CY keyed industrial chuck supplied with a Morse taper arbor, in ranges of 1-13mm, 1-16mm and 5-20mm (manufacturer-stated).
The part number gives the chuck size and the arbor: CY-16-3MT is the 1-16mm chuck with a 3 Morse taper arbor. The chuck is not integrally mounted on the arbor (manufacturer-stated). The 1-13mm and 1-16mm chucks come with a 2, 3 or 4 Morse taper arbor, and the 5-20mm chuck with a 3 or 4 Morse taper arbor.
Where this product is used
- Stationary drilling, turning, milling and woodworking machines (manufacturer-stated)
Features
- Supplied with the Morse taper arbor; the chuck is not integrally mounted on it (manufacturer-stated)
- One-piece gear ring and sleeve, which Llambrich says removes the possibility of tooth breakage (manufacturer-stated)
- Jaws, gear ring and body all totally hardened, to avoid wear and lengthen the life of the chuck (manufacturer-stated)
- Chuck ranges 1-13mm, 1-16mm and 5-20mm (manufacturer-stated)
- Manufactured in Spain (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Series | CY keyed drill chuck with Morse taper arbor |
| Chuck ranges | 1-13mm (CY-13), 1-16mm (CY-16) and 5-20mm (CY-19) (manufacturer-stated) |
| Arbor | 2, 3 or 4 Morse taper (manufacturer-stated) |
| Chuck key | LK2S17 (CY-13), LK3S10 (CY-16), LK4S13 (CY-19) (manufacturer-stated) |
| Made in | Spain (manufacturer-stated) |
Key specifications
| Part number | Range | Morse taper arbor | Chuck key |
|---|---|---|---|
| CY-13-2MT | 1-13mm | 2 Morse taper | LK2S17 |
| CY-13-3MT | 1-13mm | 3 Morse taper | LK2S17 |
| CY-13-4MT | 1-13mm | 4 Morse taper | LK2S17 |
| CY-16-2MT | 1-16mm | 2 Morse taper | LK3S10 |
| CY-16-3MT | 1-16mm | 3 Morse taper | LK3S10 |
| CY-16-4MT | 1-16mm | 4 Morse taper | LK3S10 |
| CY-19-3MT | 5-20mm | 3 Morse taper | LK4S13 |
| CY-19-4MT | 5-20mm | 4 Morse taper | LK4S13 |
Ranges and Morse taper sizes are as printed by Llambrich for every part except CY-13-4MT, which is the 1-13mm chuck with a 4 Morse taper arbor (manufacturer-stated). Chuck keys are those named for each chuck size in Llambrich's key list (manufacturer-stated).
Selecting the right option
Pick the chuck range first (1-13mm, 1-16mm or 5-20mm), then the Morse taper arbor that matches your machine spindle (2, 3 or 4 Morse taper). Llambrich lists the 5-20mm chuck with 3 and 4 Morse taper arbors only (manufacturer-stated). Llambrich's key list names LK2S17 for the CY-13, LK3S10 for the CY-16 and LK4S13 for the CY-19 (manufacturer-stated); see the imperial chuck keys. For the same CY chucks on a taper, B or thread mount see the industrial keyed drill chuck.
Related products
Same series: CY industrial keyed drill chuck, CYX-13 heavy duty keyed chuck and CYX-13 heavy duty Morse taper keyed chuck. Chuck keys: Chuck Key - Imperial and Chuck Key - Metric.
