Loc-Line 1/2" Circle Flow Nozzle Kit for Modular Hose

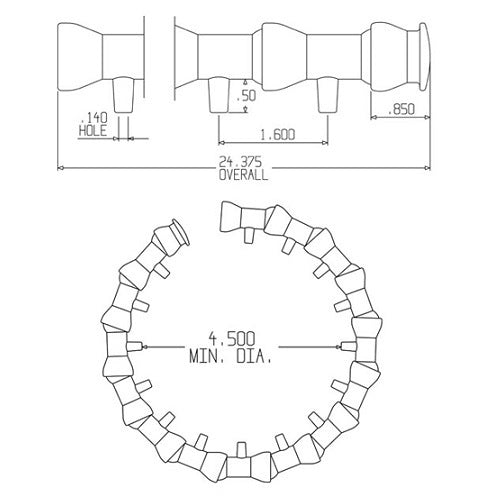

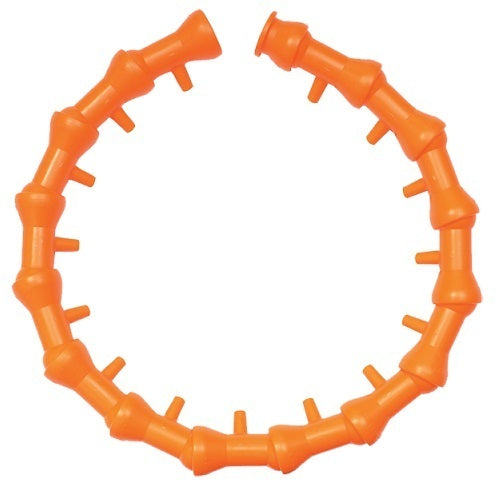

Loc-Line 51837 is the 1/2" circle flow nozzle kit for the 1/2" Loc-Line modular hose system (Lockwood Products, USA). It is assembled with 15 1/2" side flow nozzles and one 1/2" end cap, with an overall length of 24.375".

The 1/4" version is 41479, with 15 1/4" side flow nozzles, one 1/4" end cap and an overall length of 17.56". The single 1/2" side flow nozzle is 51836 (pack of 4).

Where this product is used

• Machine tool coolant supply, applying liquid coolant at the point of contact between the cutting tool and the target metal
• Other uses: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning

Features

• Assembled with 15 side flow nozzles and 1 end cap
• Overall length 24.375"
• System: 1/2" Loc-Line modular hose
• Assembled with: (15) 1/2" side flow nozzles and (1) 1/2" end cap

Key specifications

Supplied with

• 15 x 1/2" side flow nozzles
• 1 x 1/2" end cap

Choosing the right option

Choose this kit for the 1/2" system when you want the 15 side flow nozzles and the end cap in one part number. For the 1/4" system choose 41479: 1/2" system parts do not fit 1/4" hose.

Parts in this kit sold separately: 1/2" side flow nozzles (pack of 4), 1/2" end caps.

Matching 1/2" system parts: 1/2" hose, 50 ft coil, 1/2" NPT connectors, 1/2" Nozzle-Rama pack (51849).

Same kit for the 1/4" system: 1/4" circle flow nozzle kit (41479).
