Loc-Line 1/2" 90° spray bar nozzle: 51831 pack of 2, 2
Out of stock

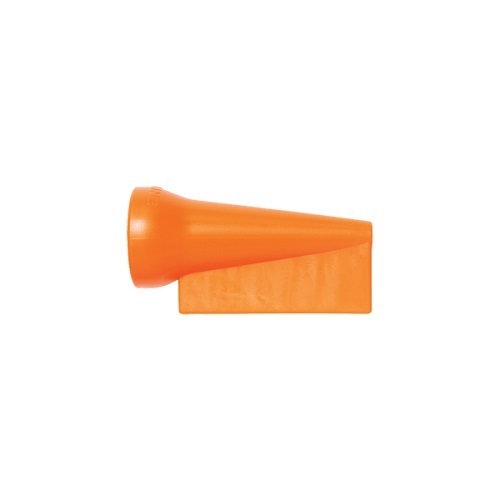

Loc-Line 51831 and 59881 are the 1/2" 90° spray bar nozzle for the 1/2" Loc-Line modular hose system (Lockwood Products, USA). It comes in 2 options: 51831 (pack of 2) and 59881 (pack of 20). It is also the spray bar nozzle in the 1/2" 90° nozzle kit (51832).
The 1/4" system has its own 90° spray bar nozzle (41473 pack of 2, 49442 pack of 20); it does not fit the 1/2" system.
Where this product is used
- Machine tool coolant supply, applying liquid coolant at the point of contact between the cutting tool and the target metal
- Other uses: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning
Features
- 51831 (pack of 2) and 59881 (pack of 20): 1/2" 90° spray bar nozzle
- Made for the 1/2" Loc-Line modular hose system
- Colour suffixes printed for 59881: -BLK (black) and -G (grey)
- System: 1/2" Loc-Line modular hose
Key specifications
| Specification | Detail |
|---|---|
| Brand | Loc-Line |
| System | 1/2" Loc-Line modular hose |
| Nozzle | 1/2" 90° spray bar nozzle |
| Pack contents | 51831: (2) 90° Spray Bar Nozzles, 59881: (20) 90° Spray Bar Nozzles |
| Colour suffixes | 59881: -BLK (black) and -G (grey), none printed against 51831 |
| Line pressure, 1/2" system | 30 PSI standard, up to 75 PSI with element clamps on all joints, fully tightened |
| Flow rate, 1/2" system | 478 gal/hr |
| Acetal temperature data | Maximum operating temperature 170 °F, melting point 329 °F |
| Pack | pack of 2, pack of 20 |
Choosing the right option
Match the nozzle to the hose system: this is a 1/2" system part, so it does not suit hose from another system. 51831 (pack of 2) and 59881 (pack of 20) are the same nozzle; the difference is the quantity. For 1/4", 3/8" and 1/2" 90° nozzles plus the spray bar in one part number, see the 1/2" 90° nozzle kit (51832).
Related 1/2" nozzles: 1/2" 90° nozzle kit (51832), 1/2" 90° nozzles, 3/8" 90° nozzles.
Matching 1/2" system parts: 1/2" hose, 50 ft coil, 1/2" NPT connectors, 1/2" Nozzle-Rama pack (51849).
Same nozzle for the 1/4" system: 1/4" spray bar nozzles.
| Option | Part number | SKU |
|---|---|---|
| 2 | 51831 | A0107305 |
| 20 | 59881 | A0107306 |
