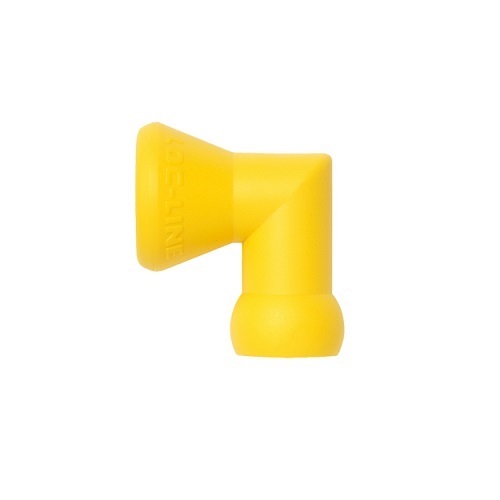

Loc-Line 45415 1/4" Acid Resistant Elbow, Pack of 2, for 1/4" Hose

Loc-Line 45415 and 46435 are the 1/4" acid resistant elbow in two pack sizes for the 1/4" Loc-Line modular hose system (Lockwood Products, USA). 45415 is a pack of 2 and 46435 is a pack of 20.

The catalogue lists these parts in the 1/4" acid resistant section and gives polyester products a maximum operating temperature of 170 °F and a melting point of 475 °F (manufacturer-stated).

Where this product is used

• Part of the 1/4" acid resistant section of the catalogue, alongside the hose, hose kit, round nozzles, NPT connectors, flare nozzle, socket x FNPT, elbow, T, Y, double socket and swivel nozzles.
• The catalogue names rinsing cycles in plating operations as a use for its acid resistant hose and cautions that the hose is not intended for conveying acids or high pressure applications (manufacturer-stated).

Features

• Pack of 2 (45415) or pack of 20 (46435): elbows
• Listed for the 1/4" acid resistant system
• Polyester temperature data: maximum operating temperature 170 °F, melting point 475 °F (manufacturer-stated)
• Compatibility listed for polyester products: acids below 150 °F yes, above 150 °F no; strong bases no (manufacturer-stated)

Common specifications

Key specifications

Pack contents are as printed in the Loc-Line catalogue (2019).

Selecting the right option

The 1/4" acid resistant system lists these fittings: elbows (45415 pack of 2, 46435 pack of 20), T fittings (45416, 46436), Y fittings (45408, 46428) and the 1/4" socket x 1/8" FNPT (45411 pack of 4, 46431 pack of 20). Choose 45415 for a pack of 2 or 46435 for a pack of 20. A 1/4" system part does not fit 1/2" hose. Check the catalogue caution listed under "Where this product is used" before choosing hose.

Related products

Other 1/4" acid resistant parts: acid resistant 1/4" T fittings (45416, 46436), acid resistant 1/4" Y fittings (45408, 46428), acid resistant 1/4" socket x 1/8" FNPT (45411, 46431) and acid resistant 1/4" hose, 50 ft coil (46421). Standard (acetal) equivalent: standard 1/4" elbows (41415, 49435).
