Loc-Line 1/4" acid resistant hose segments

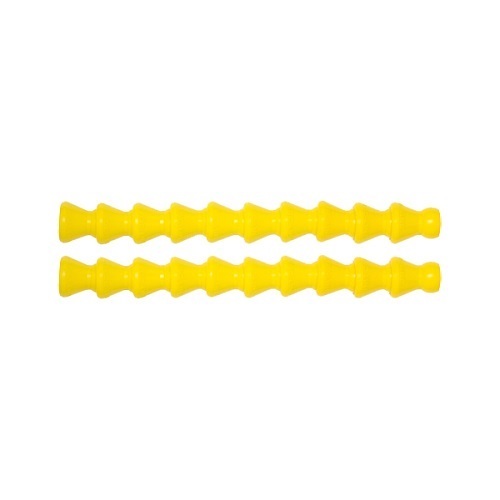

Loc-Line 45401 is a pack of 2 acid resistant hose segments for 1/4" hose, each 5-3/4" long. It is part of the 1/4" acid resistant section of the Loc-Line modular hose system (Lockwood Products, USA).

Acid environments will not corrode Loc-Line Acid Resistant Hose because of its polyester composition. Its polyester temperature data gives a maximum operating temperature of 170 °F and a melting point of 475 °F.

Where this product is used

• Rinsing cycles in plating operations
• This hose is not intended for conveying acids or high pressure applications

Features

• Pack contents: (2) 5-3/4" long segments
• Part of the 1/4" acid resistant section, which also has its own hose kit, nozzles and fittings
• Polyester temperature data: maximum operating temperature 170 °F, melting point 475 °F
• Compatibility for polyester products: acids below 150 °F yes, above 150 °F no, strong bases no

Key specifications

Choosing the right option

Match every nozzle and fitting to the 1/4" system: a 1/4" system part does not fit hose from another system.

Other 1/4" acid resistant hose parts: acid resistant 1/4" hose, 50 ft coil (46421), acid resistant 1/4" hose segments, bulk 25 ft (46420), acid resistant 1/4" hose kit (45463).

Matching 1/4" acid resistant parts: acid resistant 1/16" round nozzles (45402, 46422), acid resistant 1/8" round nozzles, pack of 4 (45403), acid resistant 1/4" round nozzles (45404, 46424).

Standard (acetal) equivalent: standard 1/4" hose segments, pack of 2 (41401).
