Loc-Line 41490: 1/4" Nozzle-Rama pack
Available
Loc-Line 41490 is the 1/4" Nozzle-Rama pack for the 1/4" Loc-Line modular hose system (Lockwood Products, USA). Loc-Line contents are "(20) Includes 1 nozzle from each of these packages: 41402, 41403, 41404, 41407, 41460, 41461, 41462, 41463, 41470, 41471, 41472, 41473, 41481, 41482, 41483, 41484, 41485, 41486, 41488, 41489".
The 1/2" system has its own Nozzle-Rama pack (51849) with 16 nozzles.
Where this product is used
- Machine tool coolant supply, applying liquid coolant at the point of contact between the cutting tool and the target metal
- Other uses: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning
Features
- Covers round, flare, 45°, 90°, spray bar, swivel, flat slot, flat 5-hole, flat 7-hole and straight flow nozzles
- System: 1/4" Loc-Line modular hose
- Line pressure, 1/4" system: 55 PSI standard, up to 110 PSI with element clamps on all joints, fully tightened
- Flow rate, 1/4" system: 250 gal/hr
Key specifications
| Specification | Detail |
|---|---|
| Brand | Loc-Line |
| Part number | 41490 |
| System | 1/4" Loc-Line modular hose |
| Line pressure, 1/4" system | 55 PSI standard, up to 110 PSI with element clamps on all joints, fully tightened |
| Flow rate, 1/4" system | 250 gal/hr |
| Acetal temperature data | Maximum operating temperature 170 °F, melting point 329 °F |
Supplied with
- 41402 x 1/16" Round Nozzle
- 41403 x 1/8" Round Nozzle
- 41404 x 1/4" Round Nozzle
- 41407 x 1" Flare Nozzle
- 41460 x 3/32" 45° Nozzle
- 41461 x 1/8" 45° Nozzle
- 41462 x 3/16" 45° Nozzle
- 41463 x 1/4" 45° Nozzle
- 41470 x 1/16" 90° Nozzle
- 41471 x 1/8" 90° Nozzle
- 41472 x 1/4" 90° Nozzle
- 41473 x 1/4" 90° Spray Bar Nozzle
- 41481 x 1/4" Swivel Nozzle 40
- 41482 x 1/4" Swivel Nozzle 60
- 41483 x 1/4" Flat Slot 40 Nozzle
- 41484 x 1/4" Flat Slot 60 Nozzle
- 41485 x 1/4" Flat 5-Hole Nozzle
- 41486 x 1/4" Flat 7-Hole Nozzle
- 41488 x 2-1/2" Swivel Nozzle 75
- 41489 x 1" Straight Flow Nozzle
Choosing the right option
Every part number in the list is printed on the range's 1/4" system nozzle pages. For several of one nozzle, use that nozzle's own pack. 1/4" system parts do not fit 1/2" hose.
Nozzles in this pack sold separately (examples): 1/16" round nozzles, 1/4" round nozzles, 1/4" 90° nozzles.
Matching 1/4" system parts: 1/4" hose, 50 ft coil, 1/4" NPT connectors, 1/4" assembly pliers.
Same pack for the 1/2" system: 1/2" Nozzle-Rama pack (51849).
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

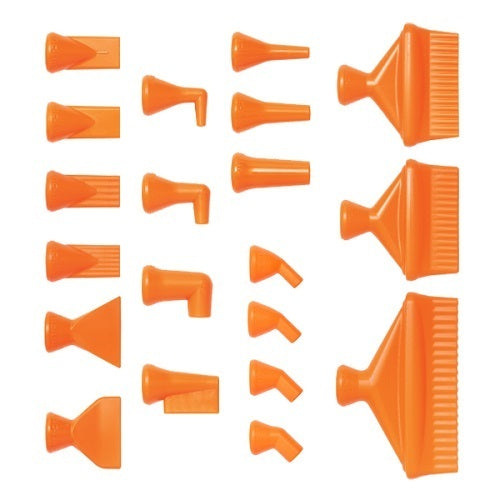

Loc-Line 1/4" Nozzle-Rama Pack - 1 of each (20 Nozzles) for Modular Hose
SKU: A0107199 | Model: 41490
Loc-Line 41490 is a 1/4" Nozzle-Rama pack. Line pressure and flow rate, 1/4" system: 55 PSI standard, up to 110 PSI with element clamps on all joints, fully tightened, 250 gal/hr.
