Loc-Line 1/4" socket x 1/8" FNPT: 41411 (4), Black / 4
Available
The 1/4" socket x 1/8" FNPT for the 1/4" Loc-Line modular hose system (Lockwood Products, USA) is available as 3 variants: 41411 (pack of 4), 41411-BLK (pack of 4, black) and 49431 (pack of 20). It is the 1/4" Socket X 1/8" FNPT in the accessories section of the 1/4" system. It is a different part from the 1/4" to 1/8" female pipe reducer (40655 and 41755).
Line pressure, flow rate and acetal temperature figures for the 1/4" system are in the specifications.
Where this product is used
- Machine tool coolant supply, applying liquid coolant at the point of contact between the cutting tool and the target metal
- Other uses: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning
Features
- 1/4" socket x 1/8" FNPT for the 1/4" Loc-Line modular hose system
- Pack contents: 41411: (4) 1/4" socket x 1/8" FNPT, 41411-BLK: (4) 1/4" socket x 1/8" FNPT, 49431: (20) 1/4" socket x 1/8" FNPT
- System: 1/4" Loc-Line modular hose system
- Part type: 1/4" socket x 1/8" FNPT
Key specifications
| Specification | Detail |
|---|---|
| Brand | Loc-Line |
| System | 1/4" Loc-Line modular hose system |
| Part type | 1/4" socket x 1/8" FNPT |
| Pack contents | 41411: (4) 1/4" socket x 1/8" FNPT, 41411-BLK: (4) 1/4" socket x 1/8" FNPT, 49431: (20) 1/4" socket x 1/8" FNPT |
| Colour suffixes | Colour suffixes -BLK (black) and -G (grey) for 49431 |

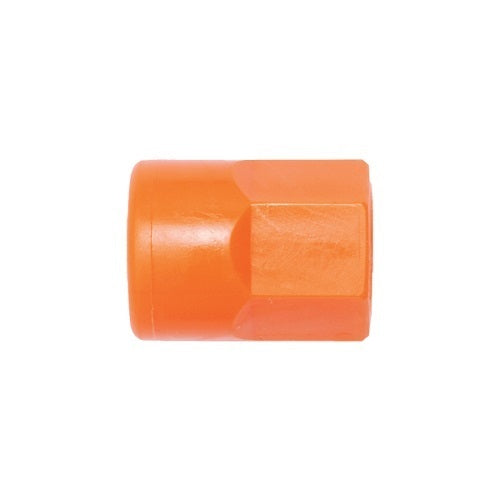

| Colour | 41411: Orange, 49431: Orange |
| Line pressure, 1/4" system | 55 PSI standard, up to 110 PSI with element clamps on all joints, fully tightened |
| Flow rate, 1/4" system | 250 gal/hr |
| Acetal temperature data | Maximum operating temperature 170 °F, melting point 329 °F |
Choosing the right option
Do not confuse it with the 1/4" to 1/8" female pipe reducer (40655, 41755), which is a Tefen female pipe reducer. Match the part to the hose system: a 1/4" system part does not fit hose from another system.
Other 1/4" system accessories: 1/4" Y fittings, 1/4" T fittings, pack of 2 (41416), 1/4" double sockets.
Matching 1/4" system parts: 1/4" hose, 50 ft coil, 1/4" assembly pliers.
Acid resistant equivalent: acid resistant 1/4" socket x 1/8" FNPT.
| Option | Part number | SKU |
|---|---|---|
| Black / 4 | 41411-BLK | A0107300 |
| Orange / 4 | 41411 | A0107301 |
| Orange / 20 | 49431 | A0107302 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

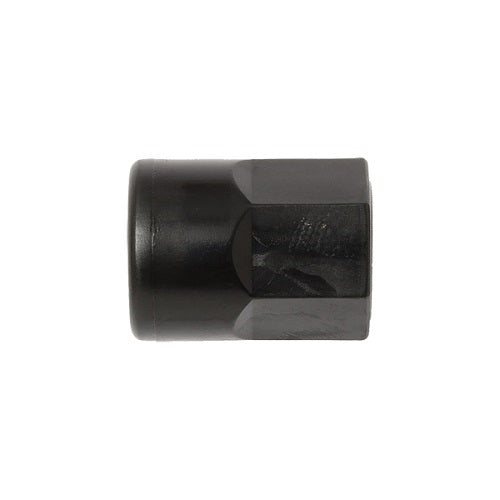

Loc-Line 1/4" to 1/8" FNPT Socket: Black / 4
SKU: A0107300 | Model: 41411-BLK
Loc-Line 41411-BLK: 1/4" socket x 1/8" FNPT for the 1/4" system, pack of 4, black. Standard line pressure 55 PSI.
