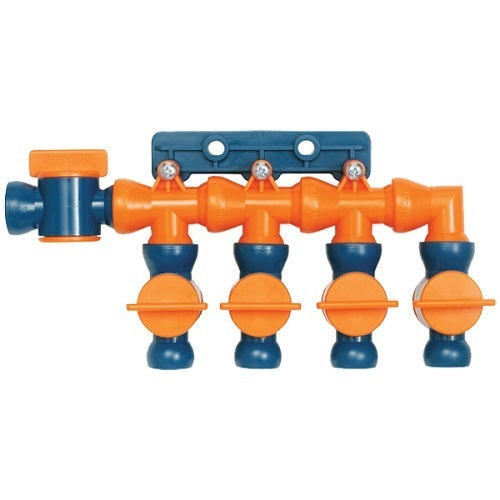

Loc-Line 1/4" total flow control manifold kit

Loc-Line 21198 is the 1/4" total flow control manifold for the 1/4" Loc-Line modular hose system (Lockwood Products, USA). the range pack list is one 1/4" modular manifold and five 1/4" in-line valves.

1/4" modular manifold under its own part number, 21199, and the 1/4" in-line valves under 21194 (pack of 2) and 29454 (pack of 10). Line pressure and flow data for the system are in the specification.

Where this product is used

• Machine tool coolant supply, applying liquid coolant at the point of contact between the cutting tool and the target metal
• Other uses: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning

Features

• Pack list: (1) 1/4" Modular Manifold, (5) 1/4" In-Line Valves
• Five 1/4" in-line valves in the pack list
• Made for the 1/4" Loc-Line modular hose system
• System: 1/4" Loc-Line modular hose

Key specifications

Supplied with

• 1 x 1/4" Modular Manifold
• 5 x 1/4" In-Line Valves

Choosing the right option

Choose 21198 for a 1/4" manifold with the five in-line valves already in the pack. Match the part to the hose system: a 1/4" part does not fit hose from another system.

1/4" manifold parts: 1/4" modular manifold (21199), 1/4" manifold brackets (21195).

1/4" valves: 1/4" in-line valves (21194, 29454), 1/4" male NPT valves (21192, 29452), 1/4" female NPT valves (21193, 29453).
